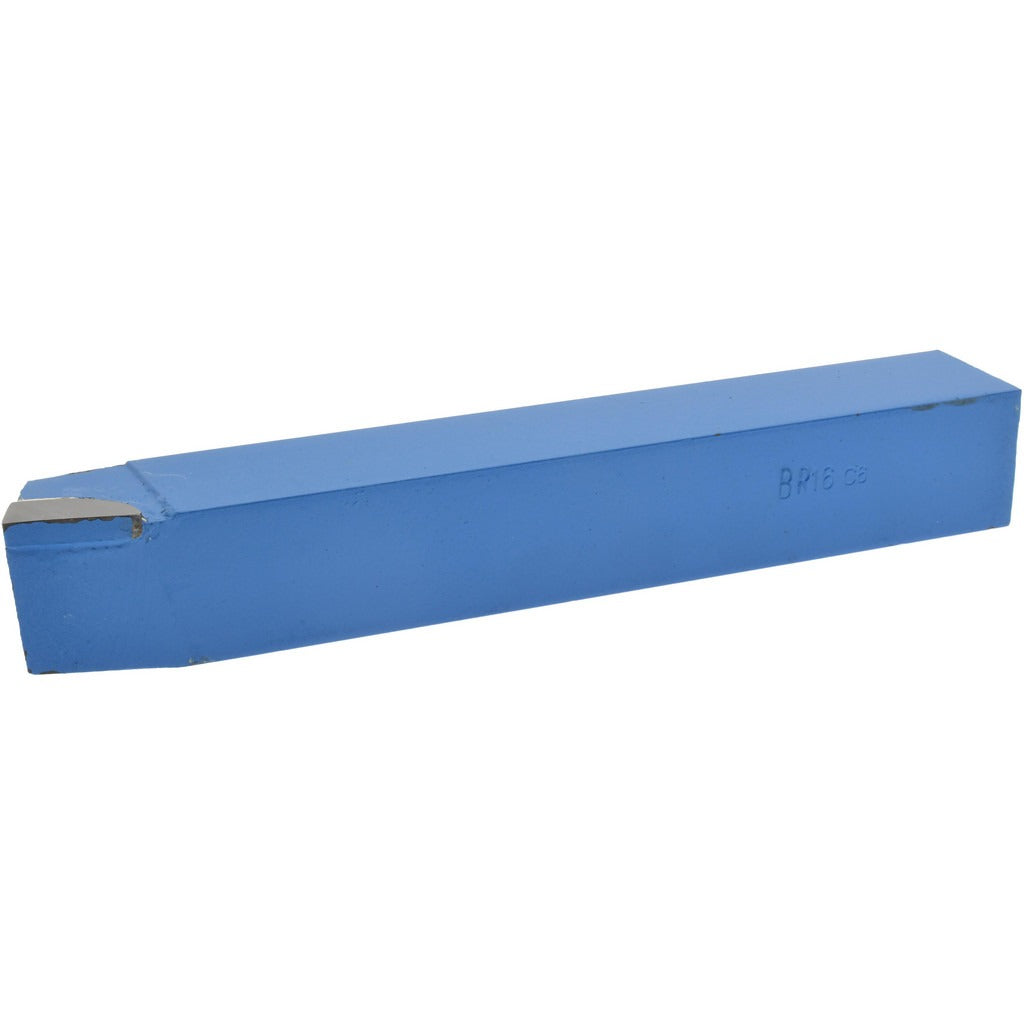

Value Collection 383-1086 BR-16 Single-point Tool Bit

Product Description

The VALUE COLLECTION 383-1086 is a BR-style single-point tool bit built for lead angle turning operations on manual and CNC lathes. The bit carries an industry standard BR-16 designation and features a brazed C6-grade solid carbide tip, which provides the hardness and wear resistance needed for interrupted cuts, boring, chamfering, and general turning. The shank measures 1 inch in height and 1 inch in width, with an overall length of 6 inches. Cutting direction is right hand. This tool bit is sized and graded for machinists and tool-and-die professionals working with cast iron, non-ferrous metals, and similar materials that respond well to C6 carbide.

This tool bit is suited for use in production turning, job-shop lathe work, and maintenance machining environments. The 15-degree lead angle geometry makes it appropriate for facing, straight turning, and chamfering passes. It fits standard square-shank tool holders accepting a 1-inch shank. Typical applications include boring operations on a turret lathe or engine lathe, as well as interrupted-cut turning where carbide toughness is required over high-speed steel.

Key Features

• BR-16 industry standard designation for consistent tool-holder compatibility
• C6-grade solid carbide tip rated for boring, chamfering, interrupted cuts, and turning
• 15-degree lead angle geometry for facing and straight turning passes
• 1 inch by 1 inch square shank fits standard 1-inch tool holders
• Right-hand cutting direction
• 6-inch overall length for reach on standard lathe tool posts

Compatibility

Designed as a replacement or spare BR-16 single-point tool bit for use in standard square-shank lathe tool holders accepting a 1-inch shank, consistent with the BR-16 industry standard specification.

Installation Notes

Installation is performed by qualified machinists following standard lathe tooling practices. Secure the shank firmly in the tool holder and verify proper tool height alignment before engaging the workpiece. Ensure the lathe is fully powered off and the spindle is locked before seating or removing the tool bit. Follow applicable shop safety procedures and machine-specific manufacturer guidelines when setting tool overhang and depth of cut.
