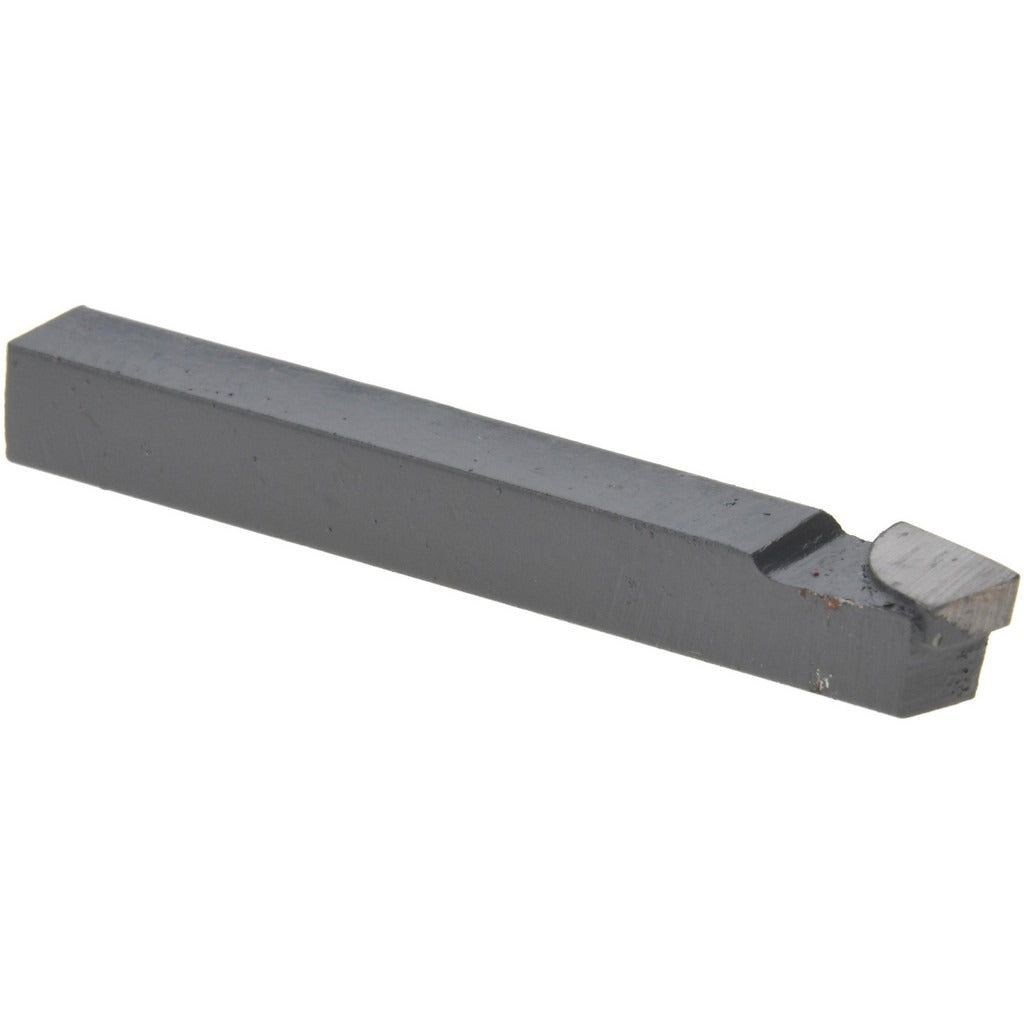

Value Collection 383-1012 BR-4 Single-point Tool Bit C2 Carbide

Product Description

The VALUE COLLECTION 383-1012 is a BR-style single-point tool bit designed for lead angle turning operations on manual and CNC lathes. It features a C2 grade solid carbide tip brazed to a right-hand cutting orientation, with a 1/4 inch shank height and 1/4 inch shank width. The overall length is 2 inches. The C2 carbide grade provides a balance of wear resistance and toughness suited to general-purpose turning of cast iron, non-ferrous metals, and similar materials. Machinists and tool-and-die professionals use this style of insert for consistent, repeatable cuts in production and job-shop environments.

This tool bit is suited to boring, chamfering, interrupted cuts, and general turning applications. The 15-degree lead angle geometry distributes cutting forces across a wider edge contact zone, which is useful when machining workpieces prone to chatter or when taking moderate depth-of-cut passes. Right-hand cutting direction makes it compatible with conventional lathe setups where the tool feeds toward the headstock. It fits standard tool holders and boring bars sized for 1/4 inch shank tooling.

Key Features

• C2 solid carbide tip for improved wear resistance over high-speed steel in general turning
• BR-4 industry standard designation for consistent tool holder compatibility
• 15-degree lead angle geometry reduces chatter and distributes cutting forces
• Right-hand cutting direction for standard lathe feed toward headstock
• Supports boring, chamfering, interrupted cuts, and turning in a single tool style
• Compact 2 inch overall length suits tight boring bar and turret applications

Compatibility

Designed as an OEM-style replacement or direct-fit tool bit for standard 1/4 inch shank tool holders and boring bars conforming to the BR-4 industry standard designation.

Installation Notes

Installation is performed by machinists or toolroom technicians. Ensure the lathe is fully powered down and the spindle is locked before seating or replacing tool bits in the holder. Secure the shank fully within the tool holder to the manufacturer-specified clamping depth before engaging the workpiece. Inspect the carbide tip for cracks or chipping before each use, as interrupted cuts and heavy feeds accelerate tip wear.
