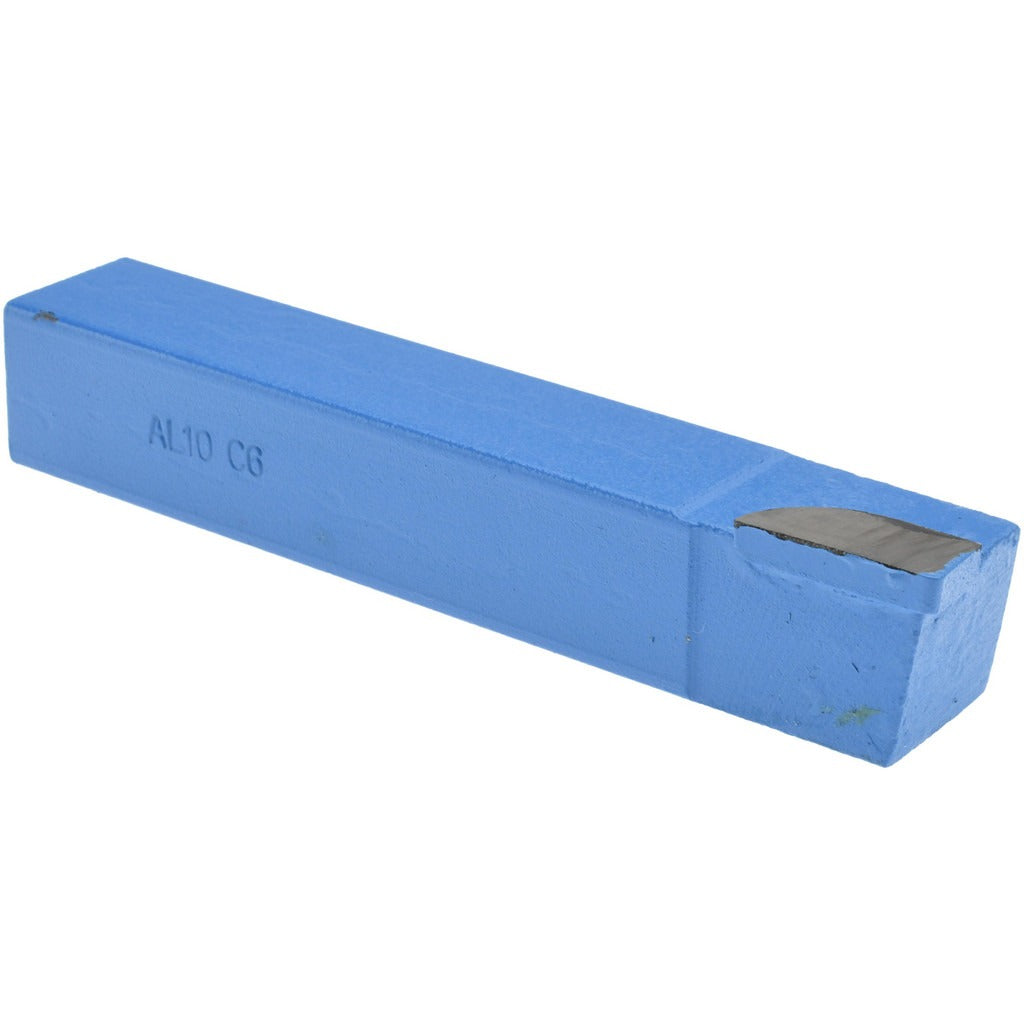

Value Collection 383-0166 Single-point Tool Bit AL-10

Product Description

The VALUE COLLECTION 383-0166 is a left-hand single-point tool bit designed for use on manual and CNC lathes in boring, chamfering, and turning operations. It follows the AL-10 industry standard geometry and features a C6-grade solid carbide tip, which provides the hardness and wear resistance needed for cutting ferrous and non-ferrous metals at moderate to high speeds. The shank measures 5/8 inches in height and 5/8 inches in width, with an overall length of 4 inches. Machinists and toolroom technicians select this bit when a left-hand cutting direction is required for specific workpiece setups or machine configurations.

This tool bit is suited for general-purpose metal cutting in job shops, production machining environments, and maintenance toolrooms. Its square shoulder turning profile makes it appropriate for facing, shoulder cutting, and straight turning passes. The AL-style geometry and C6 carbide grade are commonly matched to applications involving cast iron, steel alloys, and similar materials where a durable cutting edge is required. It is sold and packaged as a single unit, making it a practical replacement or supplemental addition to an existing toolholder setup.

Key Features

• AL-10 industry standard designation for consistent fitment with compatible toolholders
• C6 solid carbide tip grade for wear resistance in ferrous and non-ferrous cutting
• Left-hand cutting direction for specific turning and boring orientations
• Square shoulder turning style supports facing, chamfering, and straight turning
• 5/8 inch by 5/8 inch shank cross-section for rigid tool holding
• 4-inch overall length provides reach for standard lathe setups

Compatibility

Designed as an OEM-style replacement or direct-fit tool bit for toolholders accepting AL-10 standard single-point inserts with a 5/8 inch square shank profile.

Installation Notes

Installation is performed by machinists or toolroom technicians. Secure the tool bit firmly in the toolholder before initiating any cutting operation and verify cutting direction matches the machine spindle rotation. Power down and lock out the machine before seating or adjusting the bit. Inspect the carbide tip for chipping or wear before each use and replace if edge integrity is compromised.
