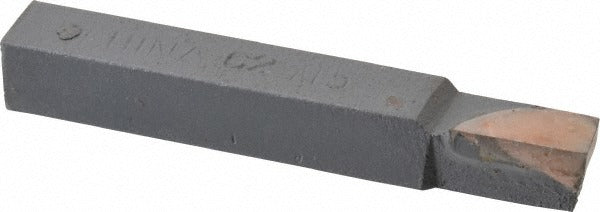

Value Collection 383-0122 AL-5 Single-point Tool Bit 5/16 Inch

Product Description

The VALUE COLLECTION 383-0122 is an AL-style single-point tool bit designed for square shoulder turning operations on manual and CNC lathes. It features a C2-grade solid carbide tip brazed to a square shank measuring 5/16 inches in height and 5/16 inches in width, with an overall length of 2.25 inches. The left-hand cutting direction suits right-to-left feed passes on the workpiece. This tool bit is used by machinists and tool-and-die professionals for general-purpose metal removal where a compact, brazed carbide tool is preferred over indexable insert tooling.

This tool bit is suited for boring, chamfering, and turning applications in light to medium material removal on ferrous and non-ferrous workpieces. The AL-5 industry standard designation makes it a direct fit for standard tool holders accepting 5/16-inch square shank single-point bits. It is commonly installed in turret lathes, engine lathes, and manual toolroom machines where consistent geometry and a solid carbide cutting edge are required.

Key Features

• AL-5 industry standard designation for compatibility with 5/16-inch square shank tool holders
• C2-grade solid carbide tip provides hardness suitable for general-purpose turning and boring
• Left-hand cutting direction for right-to-left feed passes
• Square shoulder turning geometry supports facing, chamfering, and turning operations
• Compact 2.25-inch overall length fits short-reach tooling setups
• 5/16-inch square shank in both height and width for secure clamping in standard tool posts

Compatibility

Designed as a direct-fit replacement or standard toolroom addition for any tool holder or tool post accepting a 5/16-inch square shank single-point tool bit conforming to the AL-5 industry standard.

Installation Notes

Installation is performed by machinists or qualified machine operators. Secure the shank firmly in the tool post or turret holder, ensuring the cutting edge is set at the correct center height relative to the workpiece before engaging the cut. Inspect the brazed carbide tip for cracks or chipping before each use, as a compromised tip can cause tool failure or workpiece damage. Do not use this tool bit for interrupted cuts or applications outside its rated cutting application range without verifying the tip grade is appropriate for the material.
