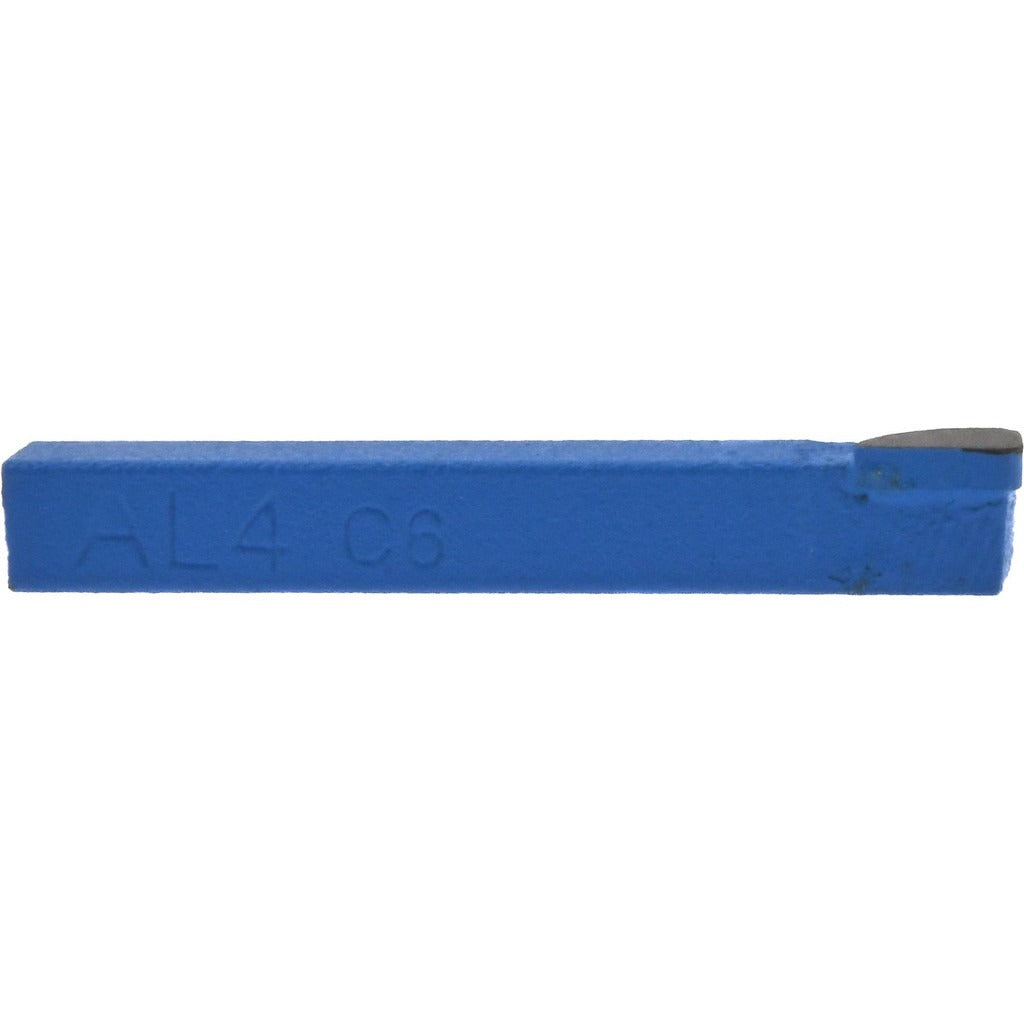

Value Collection 383-0116 AL-4 Single-point Tool Bit C6

Product Description

The VALUE COLLECTION 383-0116 is a single-point tool bit designed for lathe and turning center operations where precise material removal is required. Built to the AL-4 industry standard, this left-hand square shoulder turning bit features a solid carbide tip rated at grade C6, making it suitable for interrupted cuts and demanding workpiece materials. The shank measures 0.25 inches in height and 0.25 inches in width, with an overall length of 2 inches. Weighing 0.06 pounds, it is compact and fits standard small-bore toolholders. Machinists and tool-and-die professionals install this bit in production and job-shop environments.

This tool bit is sized for small-bore applications and is well suited for boring, chamfering, and turning operations on metalworking lathes. The left-hand cutting direction makes it appropriate for operations where the cutting tool advances from left to right relative to the chuck. The AL-4 industry standard designation ensures dimensional interchangeability with compatible toolholders and insert seats designed to that specification. It is commonly used in both manual and CNC lathe setups where a brazed or solid carbide single-point bit is preferred over indexable insert tooling.

Key Features

• AL-4 industry standard single-point tool bit style for dimensional compatibility
• Square shoulder turning geometry for boring, chamfering, and turning operations
• Left-hand cutting direction for right-to-left tool travel applications
• C6 solid carbide tip grade for hardness and wear resistance in demanding cuts
• Compact 2-inch overall length fits small-bore and close-clearance toolholders
• 0.25-inch square shank profile seats securely in standard toolholders

Compatibility

Designed as an OEM-style replacement or direct-fit single-point tool bit for toolholders and lathe setups requiring the AL-4 industry standard configuration with a 0.25-inch square shank.

Installation Notes

Installation is performed by qualified machinists following standard lathe safety procedures. The machine spindle must be fully stopped and locked out before seating or removing the tool bit. Secure the shank firmly in the toolholder to the appropriate clamping specification for the holder being used. Verify cutting direction and tool height relative to the workpiece centerline before beginning any cutting operation.
