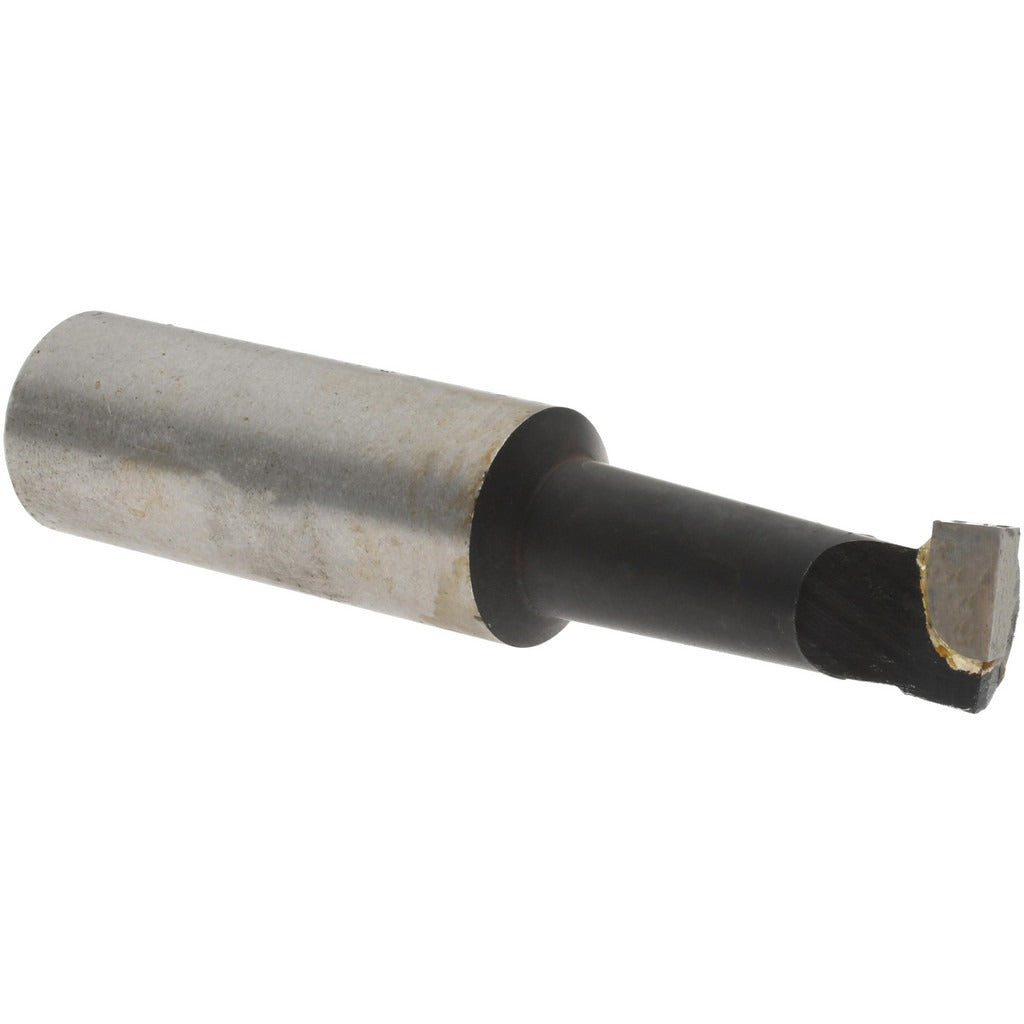

Value Collection 375-1642 Boring Bar C2 Carbide-tipped

Product Description

The VALUE COLLECTION 375-1642 is a right-hand boring bar designed for precision internal turning and bore enlargement on lathes and boring mills. The tool features a C2 carbide-tipped insert suitable for machining cast iron, non-ferrous metals, and general-purpose materials at moderate cutting speeds. With a minimum bore diameter of 9/16 inches and a maximum bore depth of 1.5 inches, this bar handles shallow to mid-depth boring operations. The 3/4-inch shank diameter provides rigid tool holding in standard boring bar holders and quick-change toolposts. Overall length is 3.5 inches. Machinists and toolroom operators working on production or maintenance turning applications will find this bar straightforward to set up and use.

This boring bar is suited for manual engine lathes, CNC turning centers, and horizontal boring mills where right-hand cutting direction is required. It is appropriate for job shops, maintenance facilities, and production environments handling light to medium boring work in ferrous and non-ferrous workpiece materials. The C2 carbide grade performs well on cast iron, aluminum, brass, and similar materials at recommended surface speeds for carbide tooling. It is not intended for interrupted cuts or hardened steels that require a higher carbide grade.

Key Features

• C2 carbide-tipped construction for wear resistance on cast iron and non-ferrous materials
• Right-hand cutting direction for standard lathe and boring mill setups
• 9/16-inch minimum bore diameter allows entry into smaller bore openings
• 1.5-inch maximum bore depth suitable for shallow through mid-depth internal cuts
• 3/4-inch shank diameter fits standard boring bar holders and quick-change toolposts
• 3.5-inch overall length provides compact tool overhang for rigid setups

Compatibility

Designed as a standard right-hand boring bar for use in lathe boring bar holders and toolposts accepting a 3/4-inch shank diameter.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the lathe or boring mill before mounting the bar in the tool holder. Ensure the shank is fully seated and clamped securely to minimize deflection during the cut. Follow shop safety procedures and applicable OSHA machine guarding requirements when operating turning equipment.
