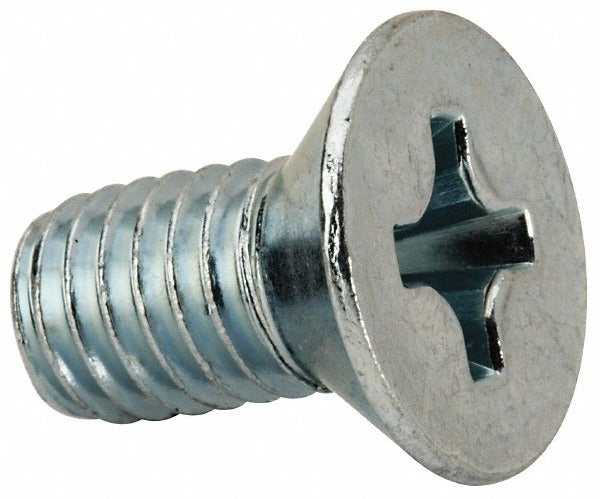

Value Collection 3712MPF 3/8-16 X 3/4 in Flat Head Phillips Screw

Product Description

The VALUE COLLECTION 3712MPF is a 3/8-16 flat head Phillips machine screw designed for general-purpose fastening in metal and structural assemblies. It features a countersunk flat head profile that sits flush with or below the mating surface when properly installed. The screw is manufactured from steel with a zinc finish for basic corrosion resistance and meets ASME B18.6.3 and SAE J82 standards. Overall length is 3/4 inches, and the thread size is 3/8-16 UNC. This fastener is handled by machinists, maintenance technicians, and trade professionals working on mechanical enclosures, equipment panels, and structural connections.

This screw is suited for residential and commercial maintenance applications where a flush-mount fastening profile is required. Typical use cases include machine frames, electrical enclosures, HVAC equipment panels, and general equipment assembly where a Phillips drive tool is the standard on site. The 3/8-16 thread pitch is a coarse unified national thread, compatible with standard tapped holes and threaded inserts of the same specification. Sold individually per package with a minimum order quantity of 10 units.

Key Features

• Flat countersunk head for flush or below-surface installation
• Phillips drive for compatibility with standard Phillips bits and screwdrivers
• 3/8-16 UNC coarse thread for use with standard tapped holes and inserts
• Steel construction with zinc finish for basic corrosion resistance
• Meets ASME B18.6.3 and SAE J82 fastener standards
• 3/4 inches overall length measured from tip to top of head

Compatibility

Designed as a standard 3/8-16 UNC coarse-thread machine screw for use in any tapped hole or threaded insert meeting the same thread specification and accepting a 3/4-inch overall length flat head Phillips fastener.

Installation Notes

Installation is performed with a standard Phillips screwdriver or Phillips bit driver sized for a 3/8-inch fastener. Ensure the mating hole is properly tapped or threaded to 3/8-16 UNC before driving the screw. A countersink must be present in the mating material for the flat head to seat flush. Do not overtighten; follow applicable torque guidelines for the joint material and application.
