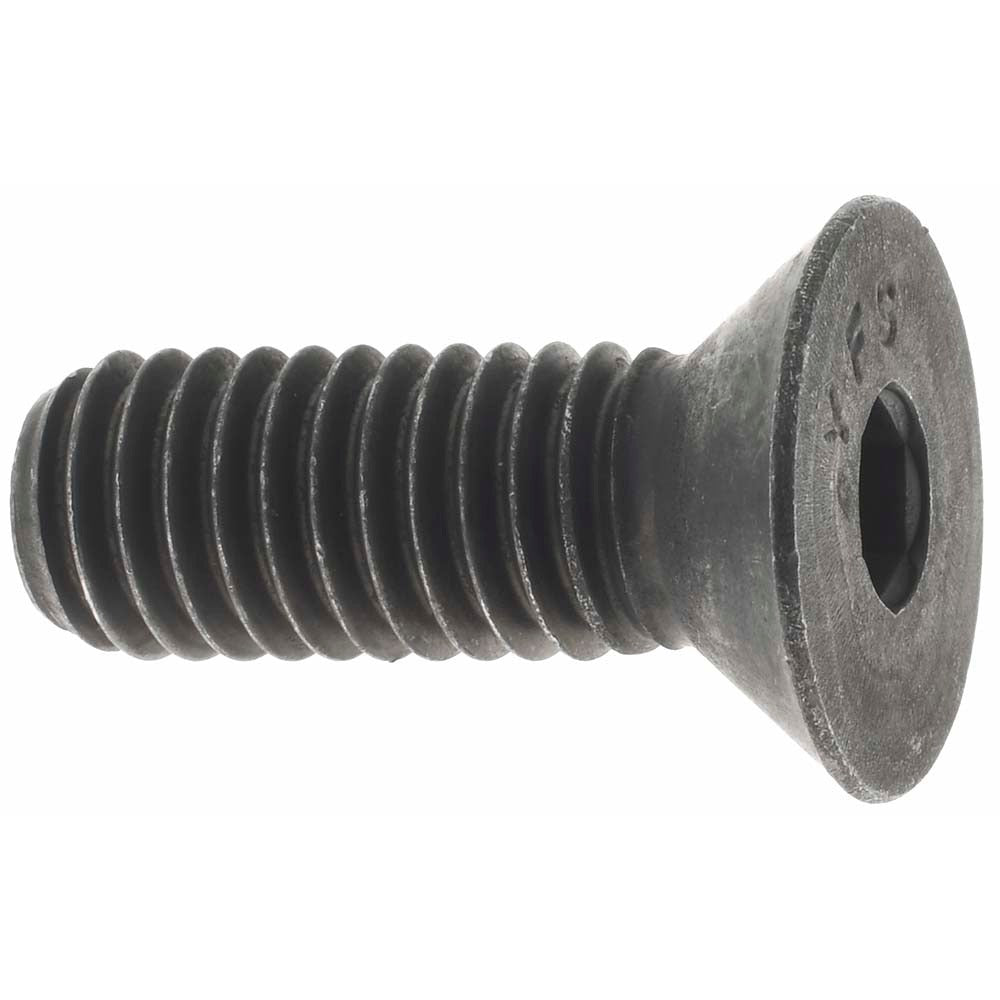

Value Collection 36847 Flat Socket Cap Screw 7/16-14 X 1-1/4 in

Product Description

The VALUE COLLECTION 36847 is a flat socket cap screw designed for applications requiring a flush or countersunk fastener profile. Built from alloy steel with a black oxide finish, this screw measures 7/16-14 thread size by 1-1/4 inches in overall length. The 82-degree flat head seats cleanly into countersunk holes, and the 1/4-inch hex socket drive accepts a standard hex key for installation and removal. The screw is fully threaded to the head, making it suitable for through-hole and short-grip applications. It conforms to ASME/ANSI B18.3 and ASTM F835 standards. Each package contains 25 pieces.

This fastener is used across industrial, mechanical, and maintenance applications where a low-profile or flush-mount screw is required. The UNC thread form and inch-series dimensions suit standard domestic hardware assemblies. Typical installations include machine frames, fixtures, jigs, and equipment panels where the screw head must sit flush with or below the workpiece surface. Licensed tradespeople, machinists, and maintenance technicians commonly specify this type of fastener for general mechanical assembly work.

Key Features

• 82-degree flat head for flush countersunk seating
• 1/4-inch hex socket drive for reliable torque transfer with a hex key
• Fully threaded shank along the 1-1/4-inch overall length
• Alloy steel construction for strength in demanding mechanical applications
• Black oxide finish provides mild corrosion resistance and reduces light reflection
• Conforms to ASME/ANSI B18.3 and ASTM F835 fastener standards
• Packaged in quantities of 25 per unit

Compatibility

Designed as an inch-series UNC flat socket cap screw for standard countersunk fastener applications conforming to ASME/ANSI B18.3 and ASTM F835 specifications.

Installation Notes

Installation requires a 1/4-inch hex key or Allen driver sized to the socket drive. The mating hole should be countersunk at 82 degrees to match the head angle for proper seating. Power down or de-energize any equipment before accessing fastened assemblies. Avoid over-driving into blind holes; verify thread engagement depth before applying full torque.
