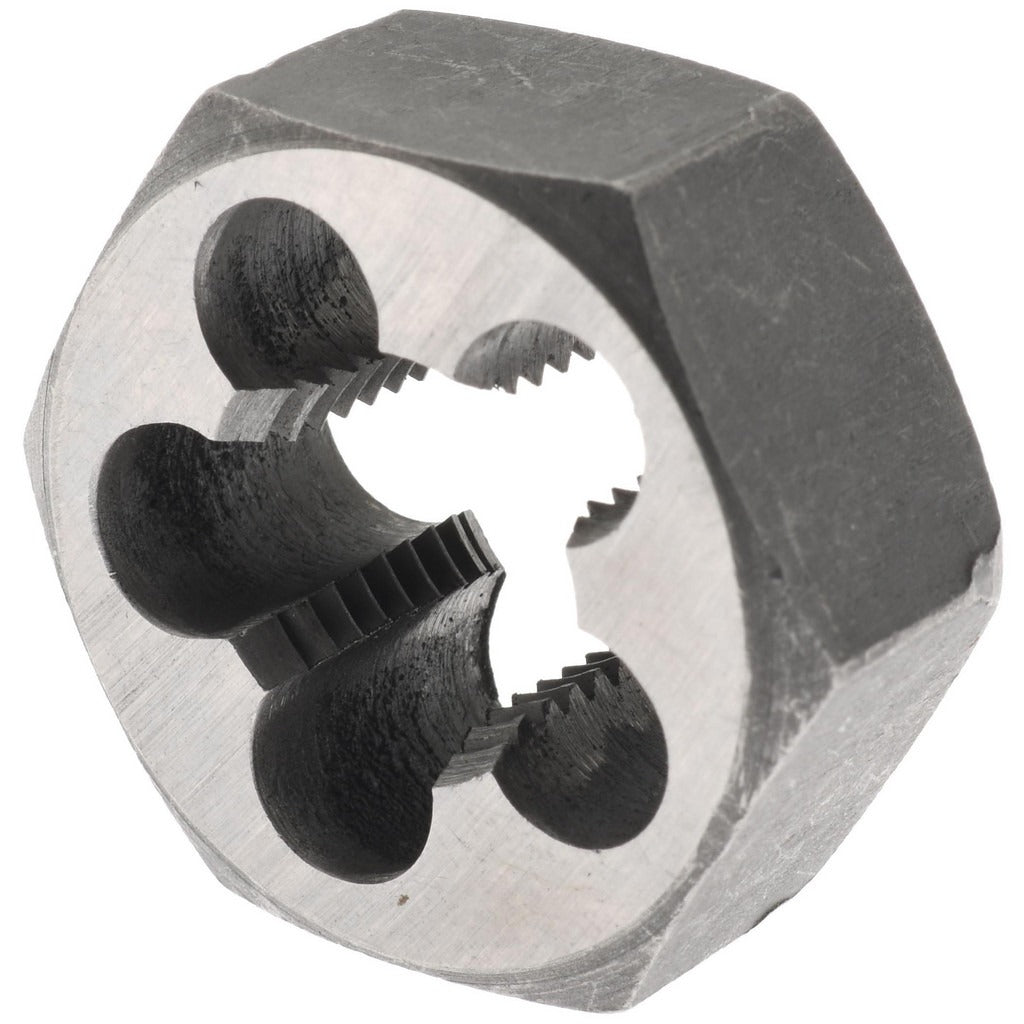

Value Collection 365-2716 Hex Pipe Die 1/4-19 Bspp

Product Description

The VALUE COLLECTION 365-2716 is a hex pipe die designed to cut 1/4-19 BSPP (British Standard Pipe Parallel) external threads on pipe and fittings. It follows the G (BSP) thread standard and cuts in a right-hand direction. The die body measures 1-1/4 inches across the hex, allowing it to seat in standard die stocks and holders designed for that hex size. Constructed from carbon steel, this die is suited for threading softer pipe materials in plumbing and fluid-conveyance fabrication work. Pipefitters, plumbers, and mechanical tradespeople use this die when fabricating or rethreading BSP-standard connections.

This die is applicable in situations requiring BSPP-standard threaded connections, which are common in imported equipment, hydraulic systems, instrumentation, and industrial fluid lines that conform to the BSP thread form. It is well-suited for shop use or field fabrication where a hand-operated or bench-mounted die stock is available. The right-hand thread direction matches the overwhelming majority of standard pipe assembly applications.

Key Features

• Cuts 1/4-19 BSPP (G thread standard) external pipe threads
• Right-hand thread direction for standard pipe assembly
• 1-1/4 inch hex body fits standard die stocks of matching hex size
• Carbon steel construction for durability in threading operations
• Single-piece packaging, sold individually

Compatibility

Designed for use in any die stock or threading tool that accepts a 1-1/4 inch hex pipe die, when cutting 1/4-19 BSPP right-hand external threads.

Installation Notes

This die is installed and operated by a pipefitter or plumber using a compatible die stock rated for 1-1/4 inch hex dies. Apply cutting oil liberally to the workpiece before and during threading to extend die life and produce clean threads. Secure the pipe firmly in a vise or pipe stand before beginning the cut. Inspect the die for wear or damage before each use, as a dull or chipped die will produce off-tolerance threads.
