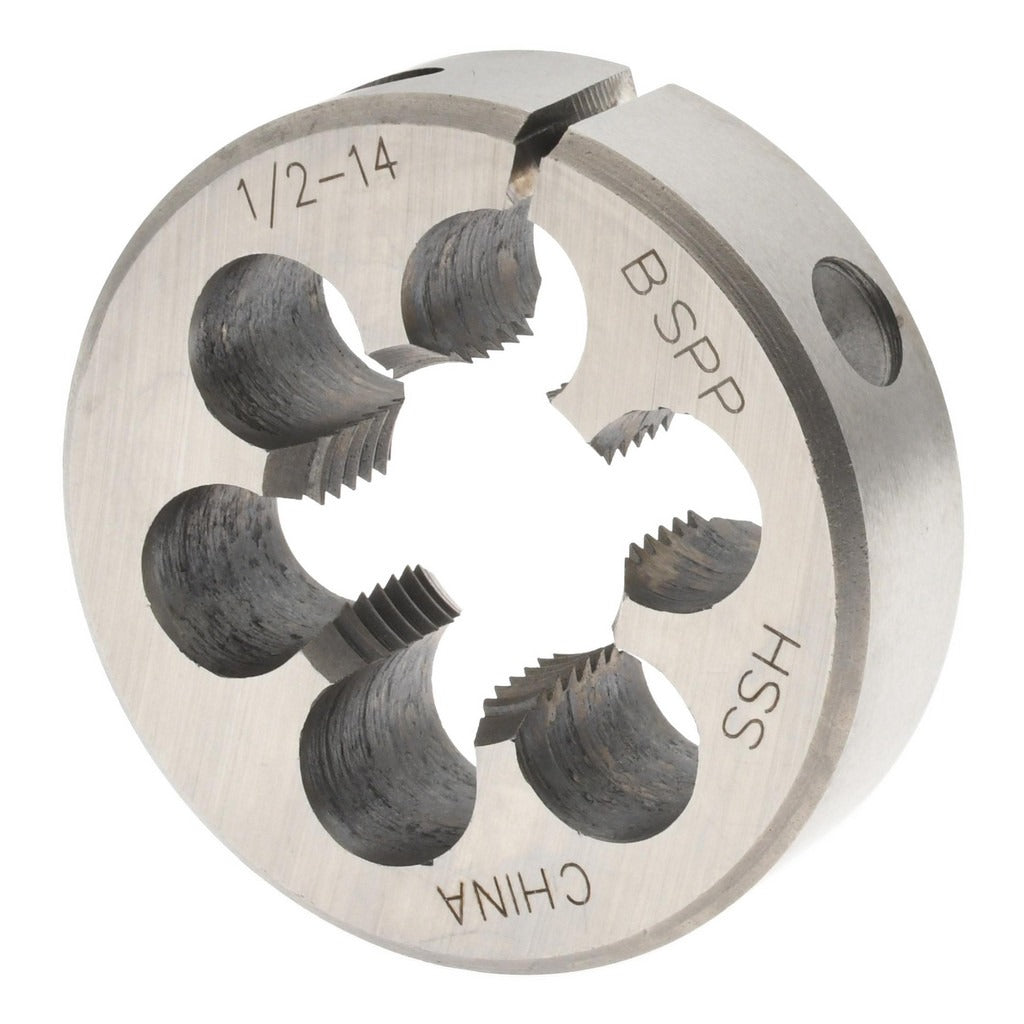

Value Collection 365-0721 Adjustable Pipe Die 1/2-14 Bspp

Product Description

The VALUE COLLECTION 365-0721 is a round adjustable pipe die designed to cut external 1/2-14 BSPP (British Standard Pipe Parallel) threads on pipe and fittings. The die is manufactured from high-speed steel, providing the hardness and heat resistance needed for clean, accurate thread cutting in production and field use. The adjustable design allows the operator to dial in thread fit, compensating for material variation or to achieve a tighter or looser thread class. At 2 inches in outside diameter, it fits standard round die stocks compatible with that OD. Machinists, pipefitters, and plumbers use this die for threading pipe to BSP specifications, commonly required in hydraulic, pneumatic, and fluid-transfer systems.

This die is suited for threading mild steel pipe, stainless pipe, and similar metals in both shop and field environments where BSP threaded connections are required. BSP threads are widely used in European, Australian, and Asian equipment, as well as in fluid power and instrumentation applications. The right-hand thread direction is the standard for most BSP fittings and valves. The 2 inch OD fits conventional die stocks and threading machines designed for that size die.

Key Features

• Thread size 1/2-14 BSPP (G thread, parallel) for use with standard BSP fittings
• High-speed steel construction for durability and resistance to heat buildup during cutting
• Adjustable design allows thread fit tuning without changing tooling
• 2 inch outside diameter fits compatible round die stocks
• Right-hand thread direction, standard for BSP pipe connections
• Lightweight at 0.3 pounds, suitable for portable die stocks

Compatibility

Designed for use in round die stocks and threading machines that accept a 2 inch OD round die. Intended for cutting 1/2-14 BSPP external threads per G (BSP) thread standard.

Installation Notes

Thread cutting with a pipe die should be performed by a qualified pipefitter, machinist, or plumber familiar with BSP thread standards. Secure the workpiece firmly in a pipe vise before threading to prevent rotation. Apply a suitable cutting oil throughout the threading operation to extend die life and produce clean thread form. Inspect the finished thread with a BSP thread gauge before assembling fittings to confirm correct fit.
