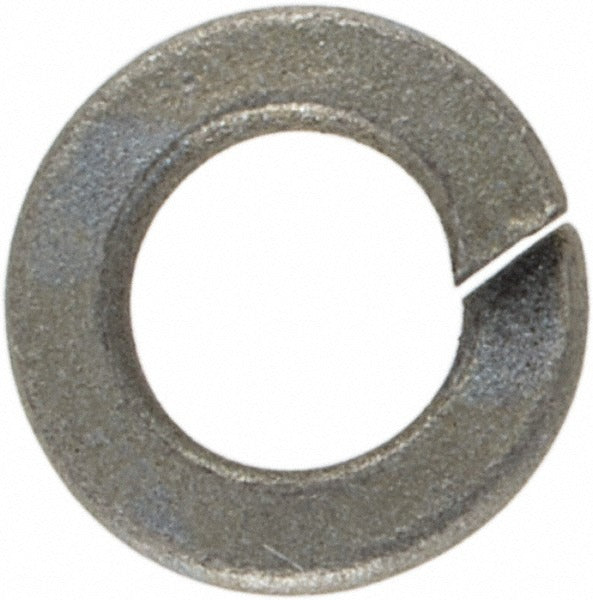

Value Collection 361006PS M2.6 Split Lock Washer Spring Steel

Product Description

The VALUE COLLECTION 361006PS is a metric split lock washer designed to resist fastener loosening under vibration and dynamic load. Made from Grade 8 spring steel with a zinc plated finish, this washer fits M2.6 screw applications and conforms to DIN 127 standards. The inside diameter ranges from 2.6 to 2.9mm with a maximum outside diameter of 5.1mm and a thickness of 0.6mm. Hardness is rated at 44-51 HRC, providing reliable spring tension when compressed under a fastener head or nut. Maintenance technicians, assemblers, and field service professionals working with small metric fasteners install these washers as a standard precaution in bolted assemblies subject to movement or vibration.

This split lock washer is suited for light-duty metric fastener assemblies across industrial, mechanical, and equipment service applications. The M2.6 sizing is common in small-frame equipment panels, motor housings, and precision assemblies where compact fastener hardware is required. The zinc plated finish provides a basic level of corrosion resistance for indoor and sheltered environments. These washers are sold individually per package with a minimum order quantity of 100 pieces.

Key Features

• Conforms to DIN 127 metric split lock washer standard
• Grade 8 spring steel construction with 44-51 HRC hardness rating
• Zinc plated finish for basic corrosion protection
• Inside diameter range of 2.6 to 2.9mm accommodates M2.6 screw size
• 0.6mm thickness provides consistent spring tension under load
• Does not meet military specifications

Compatibility

Designed as a DIN 127 metric split lock washer for M2.6 screw fastener applications in metric-standard assemblies.

Installation Notes

Install this washer between the fastener head or nut and the mating surface before torquing the fastener. Ensure the washer is fully seated and not cocked before final tightening. Power down or de-energize any equipment before accessing fastened assemblies in electrical or mechanical enclosures. Do not reuse split lock washers that have been fully compressed flat, as spring tension will be lost.
