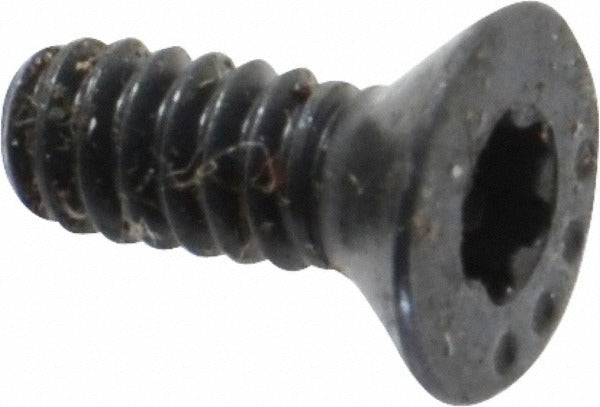

Value Collection 354-5606-01 Flat Socket Cap Screw 6-32

Product Description

The VALUE COLLECTION 354-5606-01 is a 6-32 x 3/8-inch flat socket cap screw designed for precision fastening applications requiring a low-profile, flush-mount head. Manufactured from alloy steel with a black oxide finish, this fastener delivers solid corrosion resistance and a clean appearance in finished assemblies. The 82-degree flat head seats flush with or below the surface of mating materials, reducing snag points and maintaining a clean profile. Drive engagement is handled via a T15 Torx Plus recess, which reduces cam-out compared to standard hex socket drives. Installation is handled by maintenance technicians, machine assemblers, and general trade professionals working on mechanical assemblies, enclosures, or precision equipment.

This screw is suited for light mechanical assemblies, electronic enclosures, machine components, and fabricated metal panels where a flush head profile is required. The fully threaded 3/8-inch body and UNC 6-32 thread standard make it compatible with standard tapped holes in steel, aluminum, and similar materials. Sold individually with a minimum order quantity of 100 units, making it appropriate for production line restocking, maintenance kits, or volume service applications.

Key Features

• 82-degree flat head seats flush with the mating surface for a low-profile, snag-free finish
• T15 Torx Plus drive reduces cam-out and extends tool life compared to hex socket alternatives
• Alloy steel construction provides high tensile strength for the fastener class
• Black oxide finish offers mild corrosion resistance and a dark, low-glare appearance
• Fully threaded 3/8-inch body maximizes thread engagement across the full length
• Meets ASME/ANSI B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard UNC 6-32 threaded fastener for use in any tapped hole or threaded insert conforming to the 6-32 UNC thread standard per ASME/ANSI B18.3 and ASTM F835.

Installation Notes

Installation requires a T15 Torx Plus driver bit. Verify that the mating tapped hole is clean and free of debris before driving the screw. Always ensure the workpiece is de-energized or safely secured before fastening near electrical or mechanical assemblies. Do not exceed the recommended seating torque for the 6-32 thread class as specified by the applicable engineering standard for the joint material.
