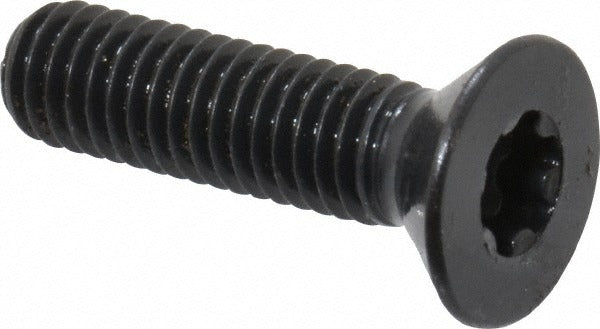

Value Collection 354-2312-01 Flat Socket Cap Screw

Product Description

The Value Collection 354-2312-01 is a 10-32 x 3/4-inch flat socket cap screw designed for precision fastening applications in mechanical assemblies, fixtures, and equipment. It features an 82-degree flat head profile with a Torx Plus T25 drive, providing high torque transfer while reducing driver cam-out. The fastener is fully threaded along its 3/4-inch overall length and is manufactured from alloy steel with a black oxide finish for corrosion resistance in controlled environments. Machinists, maintenance technicians, and assembly professionals use this screw where a flush or countersunk head is required.

This screw is suited for use in general industrial and mechanical applications where a countersunk profile keeps the fastener head flush with or below the surface of the mated component. The 10-32 UNF thread is a fine-pitch imperial standard, making it common in precision machinery, electronic enclosures, and light structural assemblies. The black oxide finish is appropriate for indoor or low-humidity environments. It conforms to fastener standards ASME/ANSI B18.3 and ASTM F835, which are standard references for socket cap screws in North American manufacturing and maintenance work.

Key Features

• 82-degree flat head profile for flush or countersunk installations
• Torx Plus T25 drive reduces cam-out and improves torque transfer over standard hex socket drives
• Fully threaded 3/4-inch overall length for maximum thread engagement in thinner materials
• Alloy steel construction provides high tensile strength for demanding fastening applications
• Black oxide finish offers mild corrosion resistance and a low-reflectance appearance
• Conforms to ASME/ANSI B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard 10-32 UNF fully threaded flat socket cap screw for use in any application requiring an 82-degree countersunk socket fastener per ASME/ANSI B18.3 and ASTM F835 specifications.

Installation Notes

Installation is performed by machinists or maintenance technicians using a Torx Plus T25 driver or bit. The mating surface should be countersunk to an 82-degree angle to achieve a proper flush or below-surface seating of the flat head. Always ensure the mated thread is clean and free of debris before installation. Power down and de-energize any equipment before accessing fastener locations in live assemblies.
