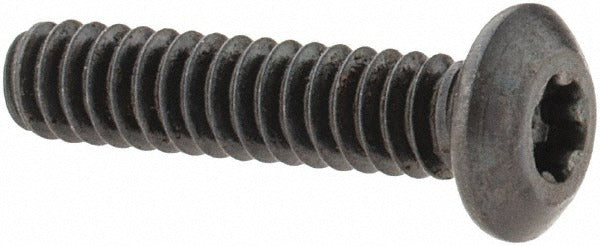

Value Collection 353-5610-01 Button Socket Cap Screw 6-32

Product Description

The VALUE COLLECTION 353-5610-01 is a 6-32 x 5/8 inch button socket cap screw designed for secure, low-profile mechanical fastening in precision assemblies and general industrial applications. Manufactured from alloy steel with a black oxide finish, the screw delivers hardness in the 39-44 HRC range and corrosion resistance suited to controlled environments. The button head profile reduces protrusion over standard cap screws, and the Torx Plus IP10 drive minimizes cam-out during installation. Thread fit class 3A and UNRC thread standard ensure consistent engagement and dimensional accuracy. This fastener is installed by machinists, maintenance technicians, and mechanical assemblers working across industrial, commercial, and light manufacturing environments.

This screw is suited for use in panel assemblies, equipment enclosures, electronic chassis, and other applications where a low-profile head and a reliable drive interface are required. The black oxide coating provides a clean, matte appearance while offering mild corrosion resistance in dry or lightly humid indoor conditions. The fully threaded 5/8 inch length accommodates shallow tapped holes and thin material stacks. Conformance to ANSI/ASME B18.3 and ASTM F835 standards makes this screw appropriate for applications requiring documented fastener specifications.

Key Features

• Torx Plus IP10 drive for reduced cam-out and higher torque transfer compared to hex socket drives
• Alloy steel construction with 39-44 HRC hardness rating for high-strength fastening
• Black oxide coating provides mild corrosion resistance and low-glare matte finish
• Button head profile offers a low-profile seating surface versus standard socket cap heads
• Thread class 3A UNRC for precise fit and consistent thread engagement
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard 6-32 UNRC thread replacement or new-install fastener for tapped holes conforming to ANSI B18.3 specifications in industrial and mechanical assemblies.

Installation Notes

Installation is performed by machinists or mechanical technicians using a Torx Plus IP10 driver bit. De-energize and lock out any equipment before accessing fastener locations on powered assemblies. Verify the tapped hole thread class and depth before installation to ensure full thread engagement. Do not exceed the torque capacity of the drive interface or the alloy steel screw by using oversized tooling.
