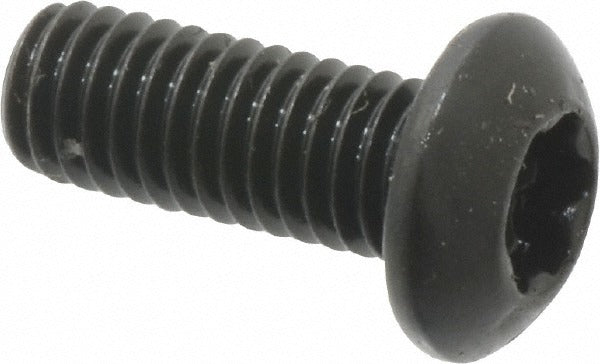

Value Collection 353-2308-01 Button Socket Cap Screw 10-32

Product Description

The VALUE COLLECTION 353-2308-01 is a button socket cap screw designed for applications requiring a low-profile head with high clamping strength. Manufactured from alloy steel with a black oxide finish, it delivers a hardness rating of 39 to 44 HRC and corrosion-inhibiting surface treatment. The screw uses a Torx Plus IP25 drive, which reduces cam-out compared to hex drives and allows higher torque transfer in tight spaces. Thread size is 10-32 Unified National Fine Right Hand with a 3A thread fit class, and the length under head is 1/2 inch. This fastener is installed by machine technicians, assembly technicians, and maintenance tradespeople across industrial and commercial settings.

This button socket cap screw is suited for machine assemblies, panel mounting, and equipment enclosures where a flush-style low-profile head is required. The black oxide coating makes it a common choice in applications where light corrosion resistance and a non-reflective finish are needed. It conforms to ANSI/ASME B18.3 and ASTM F835 fastener standards, making it appropriate for precision mechanical assemblies that reference those specifications.

Key Features

• Torx Plus IP25 drive reduces cam-out and supports higher torque transfer
• Alloy steel construction with 39 to 44 HRC hardness for high-strength applications
• Black oxide finish provides light corrosion resistance and a non-reflective appearance
• 10-32 Unified National Fine thread with 3A fit class for precise thread engagement
• Fully threaded with 1/2 inch length under head and 0.101 inch head height
• Conforms to ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard 10-32 button socket cap screw replacement or new-install fastener for machine assemblies, enclosures, and equipment panels calling for ANSI/ASME B18.3 or ASTM F835 compliant hardware with a Torx Plus IP25 drive.

Installation Notes

Installation requires a Torx Plus IP25 bit or driver. Ensure mating threaded holes are clean and free of debris before driving. Do not exceed the rated torque range for 10-32 alloy steel fasteners as specified by the equipment manufacturer or applicable fastener standards. Black oxide coatings provide minimal corrosion resistance; apply supplemental oil or wax coating if the installation environment involves prolonged moisture exposure.
