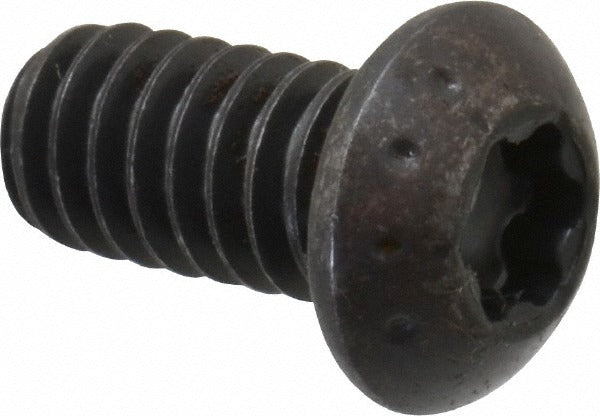

Value Collection 353-0408-01 Button Cap Screw 1/4-20

Product Description

The VALUE COLLECTION 353-0408-01 is a 1/4-20 button socket cap screw designed for secure, low-profile fastening in mechanical assemblies, fixtures, and equipment enclosures. Manufactured from alloy steel with a black oxide finish, it meets ANSI/ASME B18.3 and ASTM F835 standards. The screw measures 1/2 inch in length under the head and uses a Torx Plus IP27 drive, which provides improved torque transfer and reduced cam-out compared to standard hex drives. Hardness is rated at 39-44 HRC, making it suitable for high-stress applications. The thread is 1/4-20 UNC with a Class 3A fit and right-hand direction. Sold individually with a minimum order quantity of 100 pieces.

This button socket cap screw is used in a wide range of industrial, OEM, and maintenance applications where a rounded, low-profile head is required to clear adjacent components or provide a flush appearance. Common applications include machine frames, panel assemblies, jigs, fixtures, and equipment housings. The black oxide finish provides mild corrosion resistance and a uniform appearance. It is installed by mechanical technicians and assembly professionals in both production and field service environments.

Key Features

• Torx Plus IP27 drive for improved torque transfer and reduced cam-out
• Alloy steel construction with 39-44 HRC hardness for high-strength fastening
• Black oxide finish for mild corrosion resistance and uniform appearance
• 1/4-20 UNC Class 3A thread fit with right-hand direction
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards
• Button head profile for low-profile, flush-clearance installations

Compatibility

Designed as an OEM-style replacement or standard-fit fastener for assemblies requiring a 1/4-20 UNC button socket cap screw with a Torx Plus IP27 drive.

Installation Notes

Installation is performed by qualified mechanical technicians using a Torx Plus IP27 driver or bit. De-energize and lock out all equipment before fastener replacement or removal. Do not substitute a standard Torx bit for the Torx Plus drive, as this can damage the drive recess. Torque to the value specified in the equipment manufacturer's assembly documentation.
