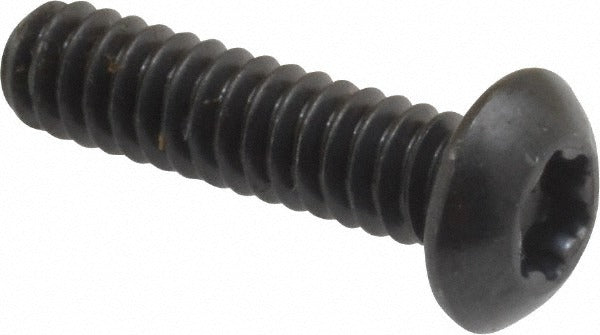

Value Collection 353-0312-01 Button Socket Cap Screw 10-24

Product Description

The VALUE COLLECTION 353-0312-01 is a 10-24 x 3/4 inch button socket cap screw designed for applications where a low-profile fastener head is required alongside high mechanical strength. Manufactured from alloy steel with a black oxide finish, this fastener delivers a hardness rating of 39-44 HRC and is fully threaded with a UNRC thread standard and 3A thread fit class. The Torx Plus IP25 drive reduces cam-out and allows higher torque transfer compared to standard hex socket drives. It is the appropriate choice for structural and mechanical assemblies where head height clearance is limited.

This screw is suited for light industrial, mechanical, and precision assembly applications where a button-head profile is needed to clear adjacent components. The black oxide coating provides mild corrosion resistance and reduces light reflection in finished assemblies. Installers working in machine shops, tooling fixtures, electronics enclosures, and general fabrication environments will find this fastener appropriate for ferrous and non-ferrous substrates requiring a clean, low-profile appearance. Minimum order quantity is 100 pieces per order.

Key Features

• Button head profile at 0.101 inch head height reduces clearance conflicts in tight assemblies
• Torx Plus IP25 drive minimizes cam-out during installation and allows higher drive torque
• Alloy steel construction with 39-44 HRC hardness for high-strength fastening
• Black oxide finish provides mild corrosion resistance and low-reflectance appearance
• Fully threaded with UNRC right-hand thread and 3A fit class for precise mating
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as an OEM-style and general-purpose replacement button socket cap screw for 10-24 threaded applications in mechanical assemblies, fixtures, and enclosures requiring a low-profile alloy steel fastener.

Installation Notes

Installation is performed with a Torx Plus IP25 bit or driver. Use a calibrated torque driver when assembly specifications require controlled clamp load. Inspect mating threads for damage or contamination before installation. A minimum order quantity of 100 pieces applies to this SKU.
