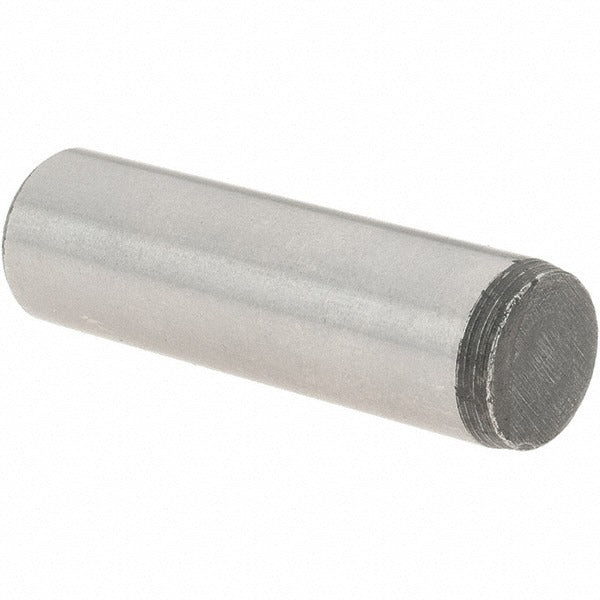

Value Collection 34908 Pull Out Dowel Pin 7/16 X 1.5 in Grade 8

Product Description

The VALUE COLLECTION 34908 is a standard pull out dowel pin manufactured from Grade 8 alloy steel for use in precision alignment and assembly applications. At 7/16 inch in diameter and 1.5 inches in overall length, this pin is produced to ASME B18.8.2 standards with a Rockwell hardness of C 50-58, providing the wear resistance and shear strength required in demanding fastening applications. One end is beveled to aid in guided insertion, while the opposite end is rounded. Installation and removal are straightforward, making this pin well-suited for fixtures, jigs, and machine assemblies where repeated disassembly is anticipated.

This dowel pin is intended for use in industrial, manufacturing, and mechanical assembly environments where precise hole alignment and load transfer between mated components are required. The pull out design simplifies extraction during maintenance or retooling without the need for drive-out tooling from the opposite side. Sold in packages of 10, this pin is appropriate for facilities and tradespeople who need consistent dimensional accuracy across multiple assembly points.

Key Features

• Grade 8 alloy steel construction for high tensile and shear strength
• Rockwell hardness C 50-58 for wear resistance in high-cycle applications
• One beveled end and one rounded end for guided insertion and clean seating
• Manufactured to ASME B18.8.2 dimensional standards
• Diameter tolerance of 0.0002 inches for precise fit in close-tolerance holes
• Pull out design allows extraction without reverse-side access

Compatibility

Designed as an OEM-style replacement or direct-fit dowel pin for applications requiring a 7/16 inch diameter standard pull out pin conforming to ASME B18.8.2 specifications.

Installation Notes

Installation and removal of dowel pins should be performed by qualified mechanical technicians using appropriate press or extraction tooling. Ensure the mating holes are reamed to the correct tolerance before insertion to avoid galling or binding. Disengage all load and de-energize associated machinery before servicing any pinned assembly. Do not hammer pins into blind holes without confirming adequate clearance for air relief.
