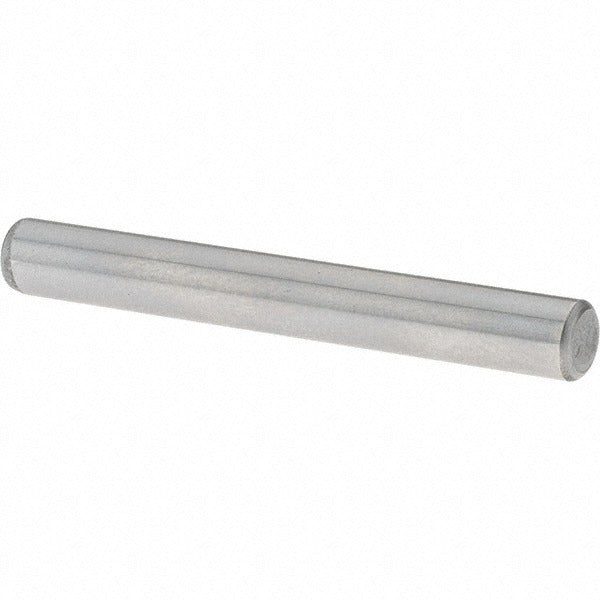

Value Collection 34881 Pull Out Dowel Pin 3/16x1.5in Grade 8

Product Description

The VALUE COLLECTION 34881 is a standard pull out dowel pin used in precision alignment and assembly applications across industrial, mechanical, and maintenance environments. Manufactured from alloy steel to Material Grade 8, this pin delivers a Rockwell hardness rating of C 50-58, providing reliable performance under shear loading. The pin measures 3/16 inch in diameter and 1.5 inches in overall length, with a diameter tolerance of 0.0002 inches for tight, repeatable fits. End configuration is one beveled end and one rounded end, conforming to ASME B18.8.2. It is installed by machinists, maintenance technicians, and millwrights requiring consistent bore alignment.

This pull out dowel pin is suited for use in jigs, fixtures, tooling plates, and machine assemblies where precise component alignment and easy removal are required. The beveled end facilitates guided insertion into bored holes, while the pull out design allows removal without specialized extraction tooling in most standard applications. Typical use environments include manufacturing floors, machine shops, and industrial maintenance settings. Pins are supplied in packages of 25, making them practical for bench stock or job kitting.

Key Features

• Alloy steel construction, Material Grade 8, for high shear strength and wear resistance
• Rockwell hardness C 50-58 for durability in repeated assembly and disassembly cycles
• One beveled end and one rounded end per ASME B18.8.2 specification
• Diameter tolerance of 0.0002 inches for precise, consistent hole fitment
• Double shear breaking strength measurement basis
• Packaged in quantities of 25 for bench stock or project use

Compatibility

Designed as an OEM-style and general-use replacement pull out dowel pin for applications conforming to ASME B18.8.2, with a 3/16 inch diameter and 1.5 inch length specification.

Installation Notes

Pull out dowel pins are installed by machinists or maintenance technicians using a press or mallet into precision-reamed holes. Ensure mating bores are reamed to the correct tolerance before installation. Do not force pins into undersized holes, as this can cause galling or bore damage. Follow applicable shop safety and lockout/tagout procedures when working on machinery or fixtures.
