Value Collection 328-5328 Double Angle Milling Cutter Hss

Product Description

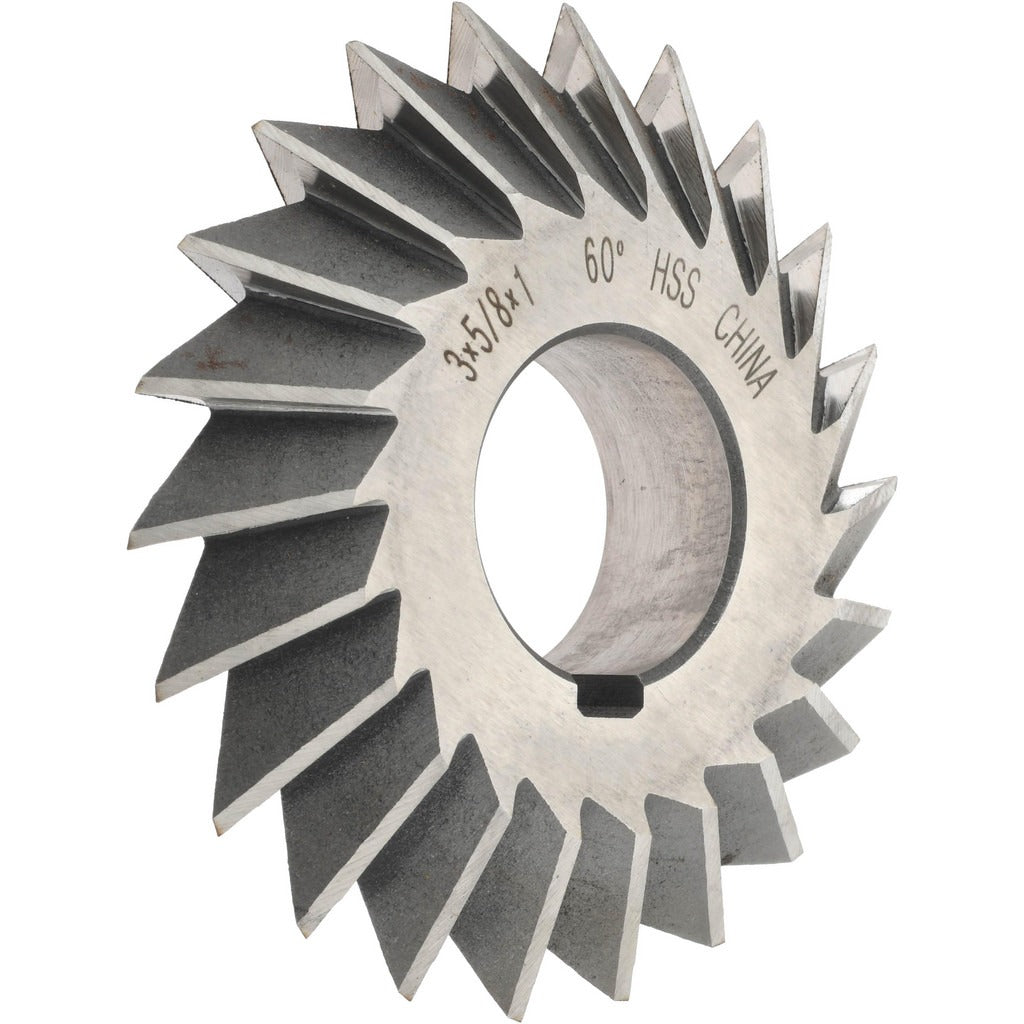

The VALUE COLLECTION 328-5328 is a double angle milling cutter designed for precision angular groove and chamfer milling on metalworking machinery. Built from high speed steel (HSS) with a bright, uncoated finish, this cutter delivers clean, accurate cuts in a range of ferrous and non-ferrous materials. The included angle measures 60 degrees, and the cutter mounts via a 1-inch arbor hole for secure, concentric seating on standard horizontal milling setups. With a 3-inch cut diameter and a 5/8-inch cutting width, it suits medium-duty milling operations where angular form accuracy is critical.

This cutter is used in machine shops and production environments for milling symmetrical V-grooves, dovetail forms, and angled chamfers on workpieces. It is appropriate for horizontal milling machines equipped with arbor tooling. Typical applications include toolroom work, fixture fabrication, and repeat production runs where consistent angular geometry is required. A licensed machinist or skilled CNC/manual mill operator performs installation and setup.

Key Features

• 60-degree included angle for symmetrical V-groove and chamfer milling
• 3-inch cutter diameter provides broad contact area for efficient material removal
• 5/8-inch cutting width suits medium-depth groove and form applications
• 1-inch arbor hole fits standard horizontal milling machine arbors
• High speed steel construction maintains edge integrity across a range of workpiece materials
• Bright, uncoated finish allows easy visual inspection of cutting edge condition

Compatibility

Designed as an arbor-mount double angle milling cutter for use on horizontal milling machines equipped with a 1-inch arbor and suitable for applications requiring a 60-degree included angle form tool.

Installation Notes

Installation is performed by a qualified machinist. Power down and lock out the milling machine before mounting or removing the cutter from the arbor. Ensure the arbor, spacers, and cutter bore are clean and free of burrs before assembly to prevent runout. Torque the arbor nut to the machine manufacturer's specification and verify cutter runout with an indicator before cutting.
