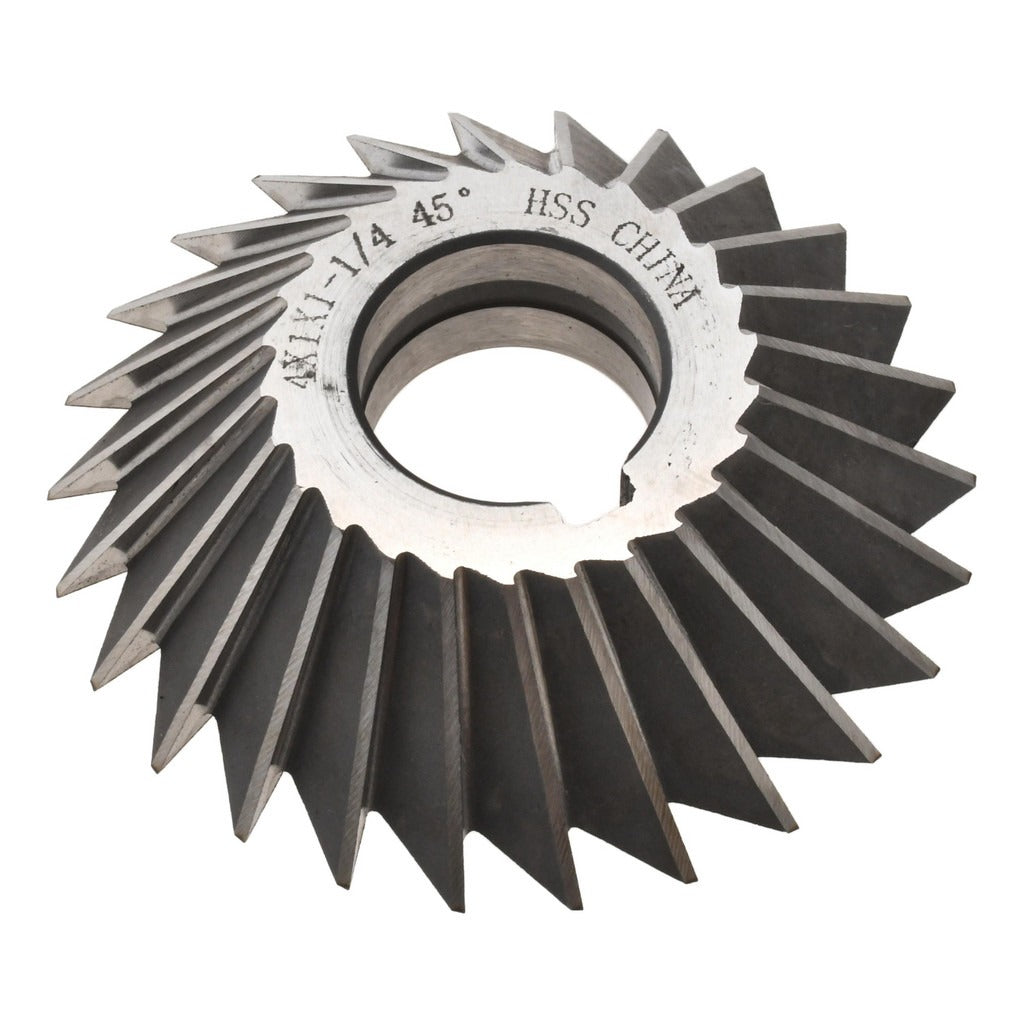

Value Collection 328-1441 Single-angle Milling Cutter 45 Degree Hss

Product Description

The VALUE COLLECTION 328-1441 is a single-angle milling cutter designed for producing chamfers, bevels, and angular surfaces on metal workpieces. Manufactured from high speed steel with an oxide finish, this cutter handles demanding material removal at 45 degrees of included angle. The 4-inch cutter diameter and 1-inch cutting width make it suited for moderate-to-heavy angular milling passes. It mounts via a standard arbor connection and features a left-hand cutting direction, requiring correct spindle orientation before use. Machinists and tool-and-die professionals install this cutter on horizontal milling machines for precision angular work.

This single-angle cutter is used in metalworking shops for milling dovetail slots, chamfer edges, and angular profiles on ferrous and non-ferrous workpieces. The 45-degree included angle is a common specification for dovetail and chamfer operations on machine components. The 1-1/4-inch arbor hole diameter fits standard milling machine arbors used in industrial and job-shop environments. Left-hand cutting direction suits machines configured for climb or conventional milling in reverse spindle applications.

Key Features

• High speed steel construction resists heat and wear during continuous metal removal
• Oxide finish provides moderate corrosion resistance and reduces friction at the cutting edge
• 45-degree included angle covers common chamfer and dovetail milling applications
• Left-hand cutting direction for use with appropriate spindle rotation
• 1/32-inch corner radius reduces edge chipping and stress concentration at the cut
• Arbor connection with 1-1/4-inch hole diameter fits widely available milling arbors

Compatibility

Designed as a standard arbor-mount single-angle milling cutter compatible with horizontal milling machines accepting a 1-1/4-inch arbor hole diameter.

Installation Notes

Installation is performed by qualified machinists. Power down and lock out the milling machine before mounting or removing the cutter from the arbor. Confirm spindle rotation direction matches the left-hand cutting direction of this cutter before engaging the workpiece. Ensure the arbor, spacers, and drawbar are properly torqued per machine manufacturer specifications before operation.
