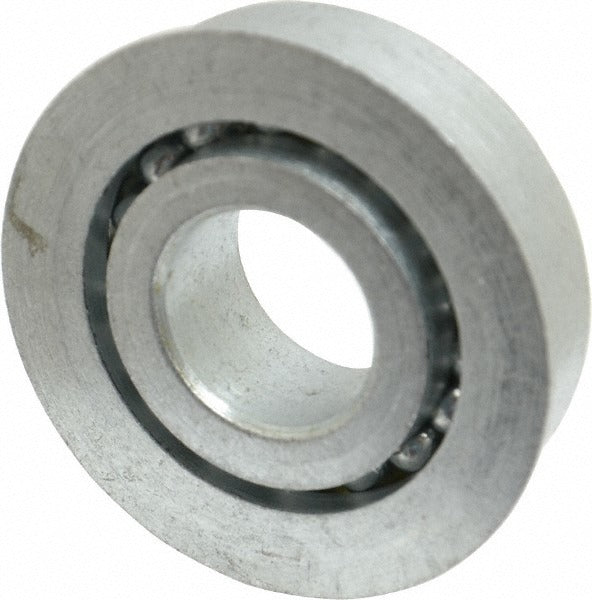

Value Collection 32704-01 Deep Groove Ball Bearing

Product Description

The VALUE COLLECTION 32704-01 is an open-style, single-row deep groove ball bearing designed for light to moderate radial load applications in mechanical assemblies, HVAC equipment, and general industrial machinery. It features a 0.625 inch round bore and an unground full complement design, which maximizes the number of rolling elements for improved load distribution. The flanged outer ring allows for axial location within a housing without requiring additional retaining hardware. With a dynamic load capacity of 769 pounds, this bearing suits low-to-moderate speed applications up to 1,500 RPM. Mechanical contractors, millwrights, and HVAC service technicians are the typical installers for this type of component.

This bearing is suited for use in blower assemblies, fan shaft applications, conveyor systems, and other rotating equipment where a compact flanged bearing simplifies housing design. The open configuration means no internal seals or shields, which is appropriate when external lubrication is accessible and the operating environment is relatively clean. The carbon steel housing material provides adequate strength for standard-duty service in controlled mechanical environments. It ships as a single unit and is a direct replacement option for similarly dimensioned unground full complement flanged bearings.

Key Features

• 0.625 inch round bore accommodates standard shaft sizes in light industrial and HVAC fan assemblies
• Flanged outer ring with 1.656 inch flange outside diameter simplifies axial positioning in through-bore housings
• Unground full complement design increases rolling element count for higher static and dynamic load capacity
• 769 pound dynamic load capacity rated for demanding radial load conditions
• Open style allows for field lubrication and suits clean, accessible installation environments
• Maximum 1,500 RPM rating appropriate for low-speed blower shaft and fan applications

Compatibility

Designed as an OEM-style replacement for open flanged deep groove ball bearings with a 0.625 inch round bore, 1.656 inch flange outside diameter, and 0.484 inch inner ring width in single-row unground full complement configurations.

Installation Notes

Bearing installation should be performed by a qualified mechanical or HVAC technician with the equipment fully de-energized and locked out per applicable OSHA lockout/tagout procedures. Use a proper bearing press or installation sleeve to apply force only to the ring being pressed; never strike the bearing directly with a hammer. Inspect the mating shaft and housing bore for wear or scoring before installation. Apply an appropriate grease or oil lubricant to the bearing and seating surfaces per the equipment manufacturer's service documentation.
