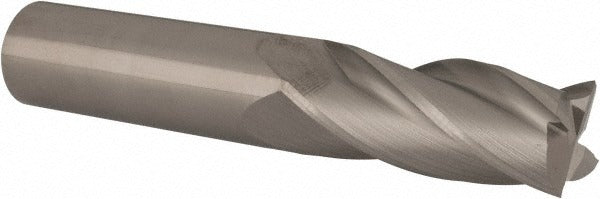

Value Collection 32021 Square End Mill 5/8 in 4 Flute Carbide

Product Description

The VALUE COLLECTION 32021 is a solid carbide square end mill designed for precision milling operations in metal fabrication and machining environments. With a 5/8 inch cutting diameter and a 1-1/2 inch length of cut, this tool removes material efficiently across a range of ferrous and non-ferrous workpieces. The 4-flute, right-hand spiral geometry with a 30-degree helix angle supports smooth chip evacuation and stable cutting performance. Micrograin carbide construction provides the hardness and wear resistance required for demanding production and toolroom applications. This is a single-end, center-cutting tool in a bright/uncoated finish, suitable for slotting, profiling, and peripheral milling cuts.

This end mill fits standard machining center spindles and CNC milling machines accepting a 5/8 inch square shank. It is sized for regular-length reach and is well suited to general-purpose milling tasks in job shops, production facilities, and toolroom environments. The bright/uncoated finish makes it appropriate for dry cutting or use with cutting fluid on aluminum, mild steel, cast iron, and similar machinable materials. No extended reach is provided, keeping rigidity high for accurate dimensional results in typical workpiece setups.

Key Features

• Solid micrograin carbide construction for hardness and extended tool life
• 4-flute, right-hand spiral design with 30-degree helix for efficient chip flow
• Center-cutting geometry allows plunge entry into workpieces
• Bright/uncoated finish compatible with dry cutting or flood coolant applications
• 5/8 inch shank with square shank type for secure collet or end mill holder retention
• Series 3200 regular-length configuration maintains rigidity at standard depths of cut

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide square end mill for CNC and manual milling machines accepting a 5/8 inch square shank in standard collets or end mill holders.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Secure the shank fully within the collet or end mill holder to the minimum insertion depth recommended by the toolholder manufacturer before tightening. Always power down and lock out the spindle before changing tooling. Inspect the cutting edges for chips or damage before each use, and confirm runout is within acceptable tolerance for the application.
