Value Collection 3194802 Flange Gasket 6 Inch Pipe

Product Description

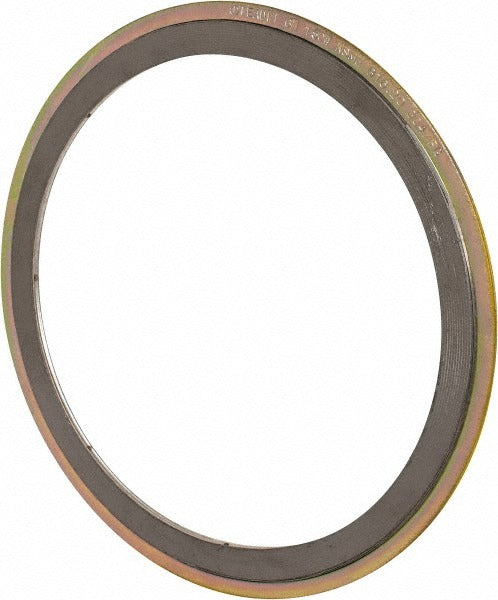

The VALUE COLLECTION 3194802 is a flange gasket engineered for use on 6-inch nominal pipe size flanged connections. It features a 7-3/16-inch inside diameter and an 8-3/4-inch outside diameter, fabricated from a carbon steel and stainless steel construction that supports a wide service temperature range. This gasket seals mating flanges in piping systems to prevent leakage of fluids or gases at the joint. It is installed by licensed plumbers, pipefitters, and industrial maintenance technicians working on commercial and industrial piping assemblies.

This gasket is suited for applications where flanged pipe joints require a reliable metal seal capable of handling extreme temperature conditions, from -440 degrees F up to 850 degrees F. Typical install scenarios include process piping, steam lines, and other high-temperature or cryogenic industrial systems where standard elastomeric gaskets would fail. The carbon steel and stainless steel composition makes it appropriate for demanding service environments.

Key Features

• Fits 6-inch nominal pipe size flanged connections
• 7-3/16-inch inside diameter and 8-3/4-inch outside diameter for precise flange seating
• Carbon steel and stainless steel construction for durability in harsh service conditions
• Rated from -440 degrees F to 850 degrees F, covering cryogenic through high-temperature steam applications
• Sold individually, quantity of one per package

Compatibility

Designed as an OEM-style replacement or service gasket for 6-inch nominal pipe size flanged connections in commercial and industrial piping systems.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable codes such as ASME B16.21 and the International Plumbing Code. Depressurize and isolate the piping system completely before breaking any flange joint. Inspect flange faces for damage or corrosion before seating the new gasket. Do not reuse a gasket that has been previously compressed under service conditions.
