Value Collection 31945256 Aramid Gasket Sheet 30x60 in

Product Description

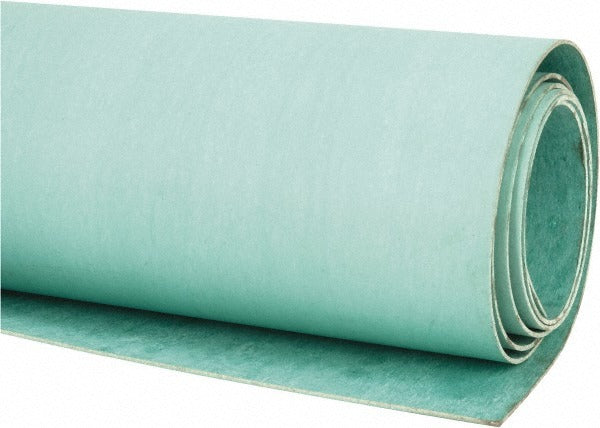

The VALUE COLLECTION 31945256 is an aramid fiber gasket sheet designed for use in high-temperature and high-pressure sealing applications across industrial, mechanical, and trade service environments. Measuring 30 inches wide by 60 inches long with a thickness of 1/16 inch, this sheet provides ample material for cutting custom gaskets to fit flanges, manifolds, housings, and other mating surfaces. The green aramid construction supports a maximum working temperature of 750 degrees F and a maximum working pressure of 1450 psi, making it suitable for steam, chemical, and thermal system service work. Licensed tradespeople and experienced fabricators are the typical end users.

This gasket sheet is suited for residential and commercial applications where standard compressed sheet gaskets are required. Common uses include pipe flange sealing, pump housings, heat exchangers, and other equipment where elevated temperature and pressure resistance are essential. The large sheet format allows technicians to trace and cut multiple gaskets from a single piece, reducing material waste and supporting a range of job-site fitting sizes. It is commonly used in plumbing, industrial piping, and mechanical system maintenance contexts.

Key Features

• Aramid fiber construction rated for temperatures up to 750 degrees F
• Maximum working pressure of 1450 psi for demanding sealing environments
• Large 30 x 60 inch sheet allows field fabrication of multiple custom gaskets
• Uniform 1/16 inch thickness for consistent sealing across mating surfaces
• Green color provides easy visual identification on the job site

Compatibility

Designed as a general-purpose aramid gasket sheet for field-cut replacement gaskets in high-temperature and high-pressure piping, mechanical, and industrial sealing applications.

Installation Notes

Gasket sheet fabrication and installation should be performed by a qualified plumber, pipefitter, or mechanical technician. Before service, de-energize and depressurize the system and allow all components to cool to a safe handling temperature. Use a sharp cutting tool and a verified template or flange trace for accurate gasket sizing. Ensure mating surfaces are clean and free of old gasket material before installing the new gasket.
