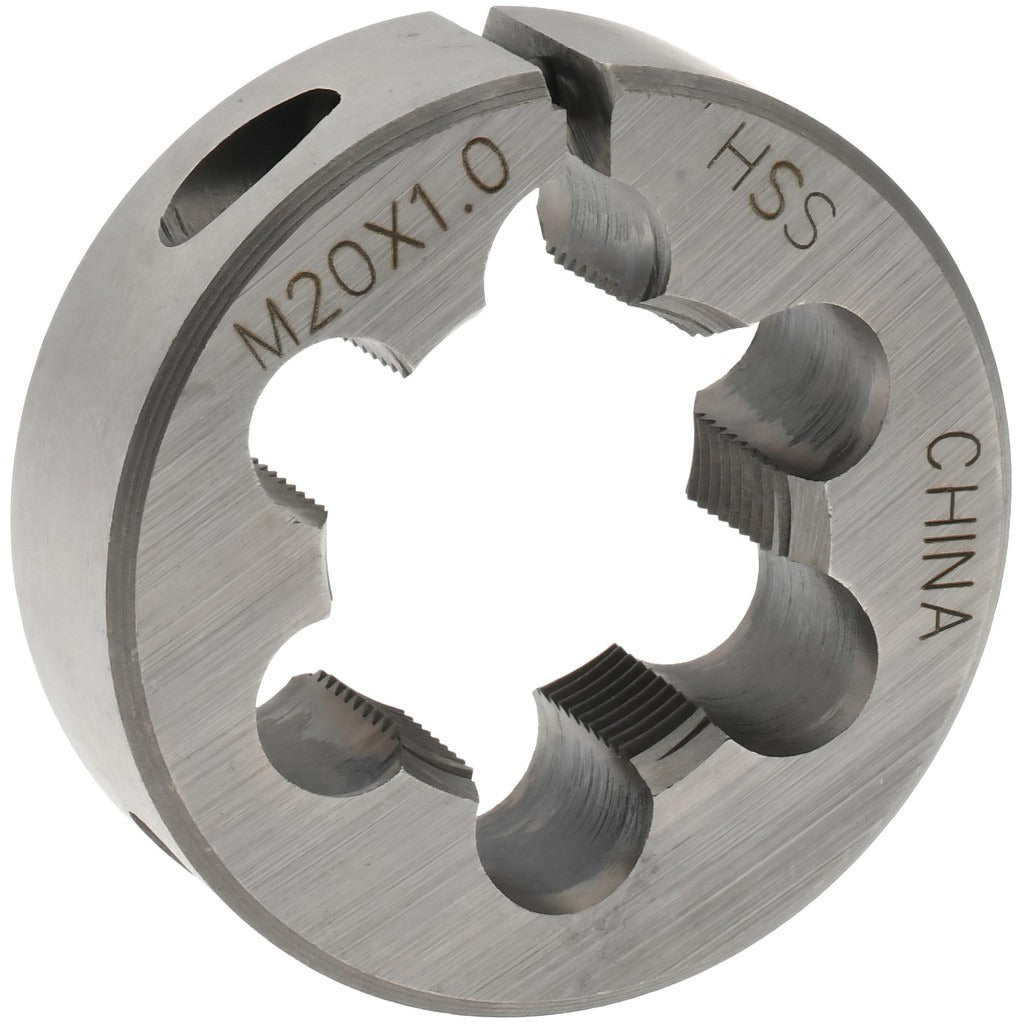

Value Collection 314-1750 Round Die M20x1 Hss Adjustable

Product Description

The VALUE COLLECTION 314-1750 is an adjustable round threading die designed to cut M20x1 metric fine external threads on bolts, studs, and round stock. Made from high-speed steel (HSS), it holds a cutting edge through repeated use and maintains dimensional accuracy across production runs. The adjustable design allows minor diameter compensation to account for tool wear or to fine-tune thread fit. Right-hand thread direction makes it compatible with standard threading procedures. Machinists, tool and die makers, and maintenance mechanics install this die using a standard die stock handle.

This die is suited for threading mild steel, aluminum, brass, and similar machinable materials in shop, manufacturing, and field maintenance environments. The M20x1 metric fine specification is common in precision assemblies, automotive components, and instrumentation where a finer thread pitch is required over the standard M20x2.5 coarse pitch. It is appropriate for both production threading and repair work on existing threaded fasteners.

Key Features

• M20x1 metric fine thread form for precision threading applications
• High-speed steel construction for durability and extended cutting life
• Adjustable design allows thread diameter fine-tuning and compensation for wear
• Right-hand thread direction for standard fastener compatibility
• Round die form fits standard die stock handles

Compatibility

Designed as a replacement or additional die for standard round die stock handles sized to accept M20 dies. Specific compatible die stock models were not provided in the available product data.

Installation Notes

A licensed machinist or qualified mechanic should secure the die in a properly sized die stock handle before use. Apply appropriate cutting fluid to the workpiece before threading to extend die life and improve thread quality. Ensure the workpiece diameter is turned or ground to the correct major diameter for M20x1 before beginning the threading operation. Follow shop safety practices including securing the workpiece and wearing appropriate eye protection.
