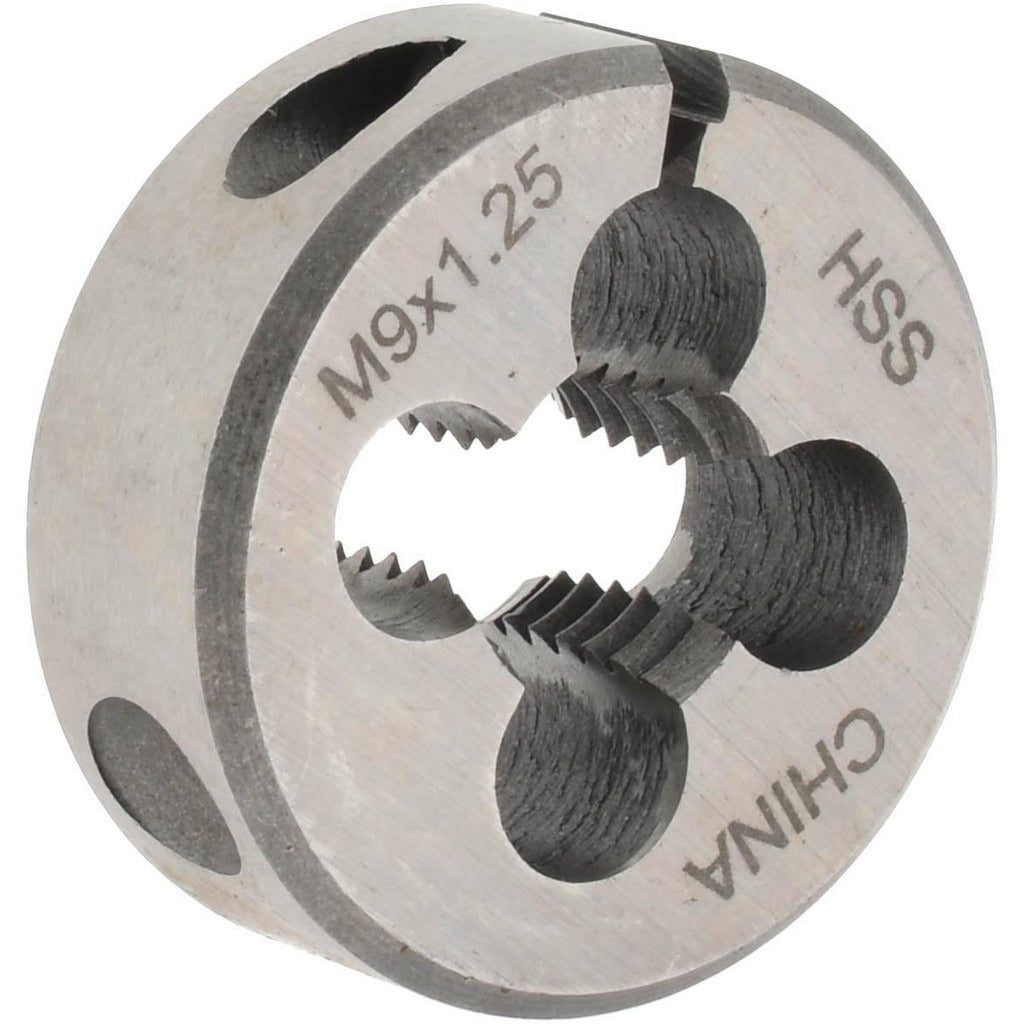

Value Collection 314-1648 Round Die M9x1.25 1 Inch Od Hss

Product Description

The VALUE COLLECTION 314-1648 is a round threading die designed to cut external metric coarse threads on rod, bolt stock, and cylindrical workpieces. Sized at M9x1.25, it produces a 9 mm major diameter thread with a 1.25 mm pitch. The die body measures 1 inch in outside diameter and is machined from high-speed steel, providing the hardness and heat resistance needed for threading steel, stainless, aluminum, and other common shop materials. An adjustable design allows the cutting diameter to be fine-tuned for thread fit, and the right-hand configuration suits standard metric fastener applications. Machinists, tool and die makers, and maintenance technicians use this die in a standard 1 inch die stock or holder.

This die is suited for job shop work, maintenance and repair operations, and production threading where a metric coarse M9x1.25 thread is required. Typical applications include threading new stock, chasing damaged threads on existing fasteners or assemblies, and custom fabrication work. The 1 inch OD fits die stocks and holders sized for that body diameter, making it compatible with commonly stocked hand threading equipment found in most machine shops and maintenance facilities.

Key Features

• M9x1.25 metric coarse thread profile for standard metric fastener applications
• 1 inch outside diameter body fits standard 1 inch die stocks and holders
• High-speed steel construction for durability across a range of workpiece materials
• Adjustable design allows fine-tuning of thread fit and cutting diameter
• Right-hand thread direction matches standard metric fastener convention

Compatibility

Designed as an OEM-style replacement or standard tooling option for use in any 1 inch round die stock or holder accepting metric round dies.

Installation Notes

This die is installed and secured in a compatible 1 inch round die stock using the stock's set screws before threading begins. Secure the workpiece in a vise or fixture and apply cutting oil to both the die and workpiece to reduce friction and extend die life. Use the adjusting screw on the die to set cutting diameter before threading a test piece. Follow standard shop safety practices and ensure the die is seated squarely against the workpiece before applying rotational force.
