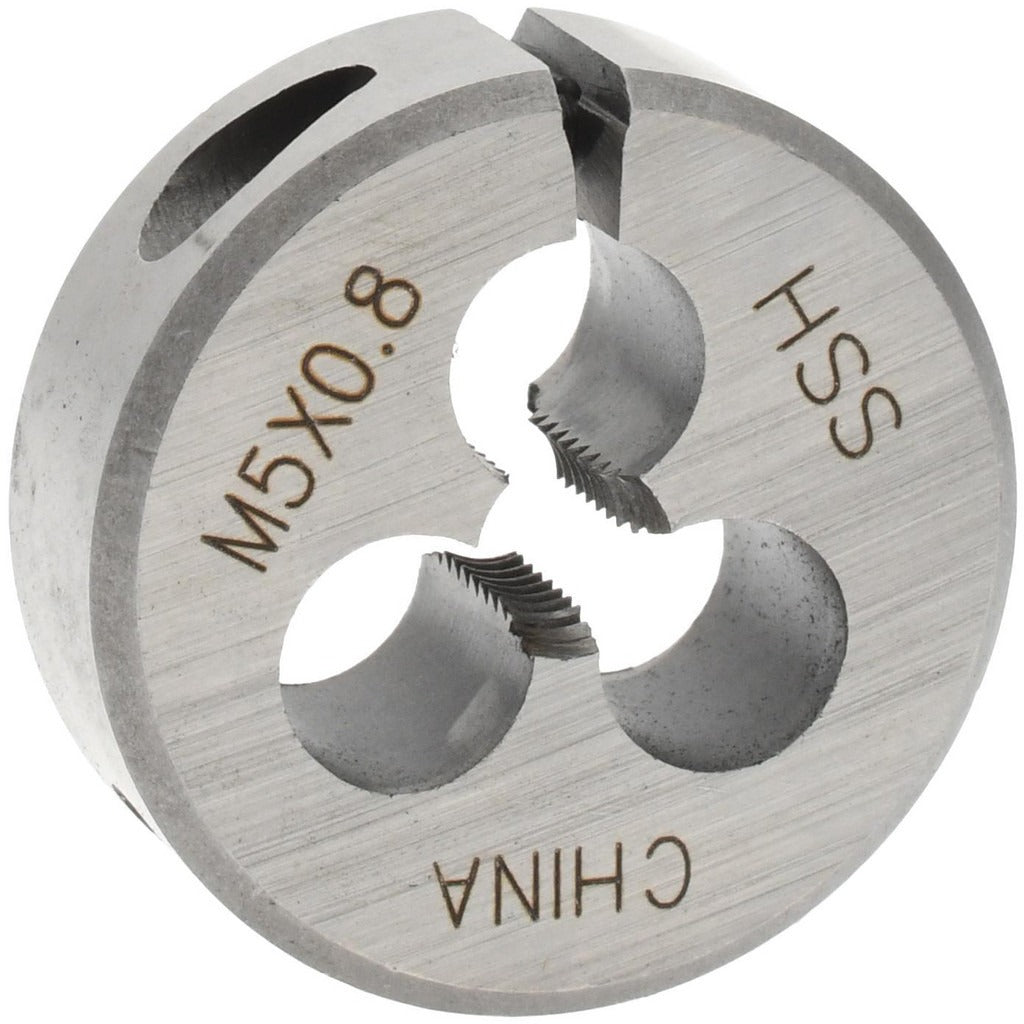

Value Collection 314-1632 Round Die M5x0.8 1 Inch Od Hss

Product Description

The VALUE COLLECTION 314-1632 is a round threading die designed to cut external M5x0.8 metric coarse threads on round stock, bolts, and fasteners. Made from high-speed steel (HSS), it delivers the hardness and heat resistance needed for threading steel, brass, aluminum, and similar materials in production and repair applications. The die features a right-hand thread direction and an adjustable design, allowing the cutting diameter to be fine-tuned for thread fit and to extend tool life. It measures 1 inch in outside diameter, fitting standard 1-inch round die stocks. Machinists, tool-and-die workers, and maintenance technicians rely on this type of die for both new threading and chasing damaged threads.

This die is suited for threading M5x0.8 fasteners and rod stock in metalworking shops, maintenance facilities, and manufacturing environments. Its adjustable design makes it appropriate for situations where thread tolerance needs to be dialed in or where the die is being used across multiple material types. The 1-inch OD fits standard round die holders commonly found in both manual and bench-mounted die stocks, making it a practical choice for repetitive threading tasks on metric hardware.

Key Features

• M5x0.8 metric coarse thread size for standard metric fastener applications
• High-speed steel construction provides hardness and wear resistance across a range of workpiece materials
• Adjustable design allows fine-tuning of cutting diameter for thread fit and extended die life
• Right-hand thread direction matches standard fastener orientation
• 1-inch outside diameter fits widely available round die stocks

Compatibility

Designed for use in standard 1-inch OD round die holders and die stocks compatible with metric coarse thread dies.

Installation Notes

Round dies of this type are installed and used by machinists and maintenance technicians working with manual or bench-mounted die stocks. Secure the die firmly in the die stock before use, and apply appropriate cutting fluid to the workpiece to reduce heat and improve thread finish. Chamfer the leading end of the rod or fastener before threading to help the die engage squarely. Inspect the die for wear or damage before each use and adjust the set screw to the correct cutting diameter per your thread tolerance requirements.
