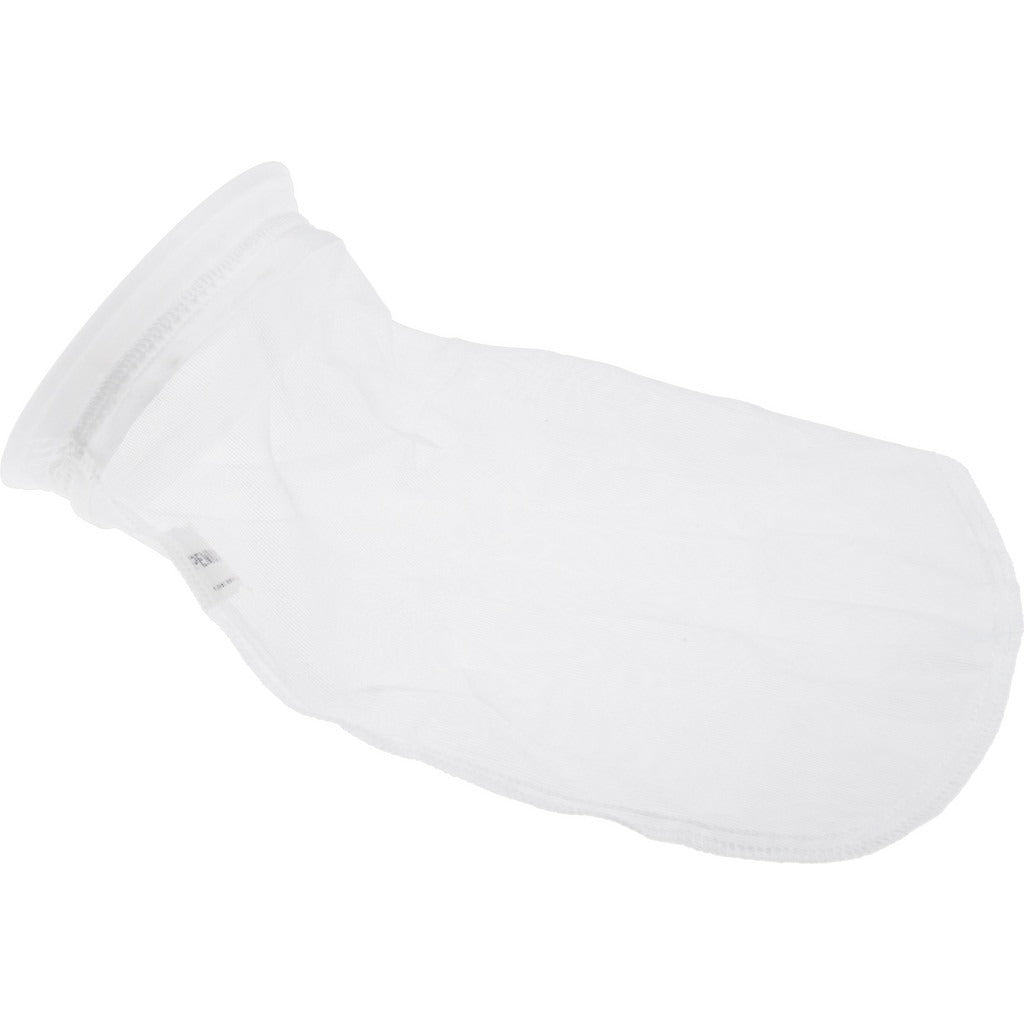

Value Collection 310-008-133 Liquid Bag Filter 800 Micron

Product Description

The VALUE COLLECTION 310-008-133 is a Size 1 liquid bag filter rated at 800 microns with a maximum flow rate of 90 GPM. Constructed from mesh polyester, it is designed to remove particulate from liquid process streams in industrial, commercial, and plumbing filtration systems. The filter measures 7 inches in diameter and 16.5 inches in length, providing 2.5 square feet of filtration area. It handles operating temperatures up to 300 degrees F, making it suitable for a range of hot-liquid applications. Plumbers, pipefitters, and industrial maintenance technicians install this filter as part of a bag filter housing assembly.

This filter is used in Size 1 bag filter housings across a broad range of liquid filtration applications, including process water, cooling systems, chemical transfer lines, and general industrial fluid handling. The 800-micron rating targets coarser particulate removal, making it appropriate as a pre-filter stage or in applications where larger debris loads are expected. It is sold as a single unit and is a direct drop-in replacement for standard Size 1 bag filter housings.

Key Features

• 800-micron rating for coarse particulate removal in liquid process systems
• 90 GPM maximum flow rate supports high-throughput filtration applications
• Mesh polyester construction rated to 300 degrees F operating temperature
• 2.5 square feet of filtration area in a compact Size 1 form factor
• 7-inch diameter by 16.5-inch length fits standard Size 1 bag filter housings
• Lightweight at 0.3 pounds for easy single-technician changeout

Compatibility

Designed as a drop-in replacement for standard Size 1 liquid bag filter housings commonly used in industrial and commercial liquid filtration systems.

Installation Notes

Installation is performed by a plumber, pipefitter, or industrial maintenance technician. Isolate and depressurize the filter housing and relieve any residual line pressure before opening the housing. Inspect the housing o-ring or gasket seat for wear and replace as needed before inserting the new bag. Restore system pressure gradually and check for leaks at the housing closure before returning the system to service.
