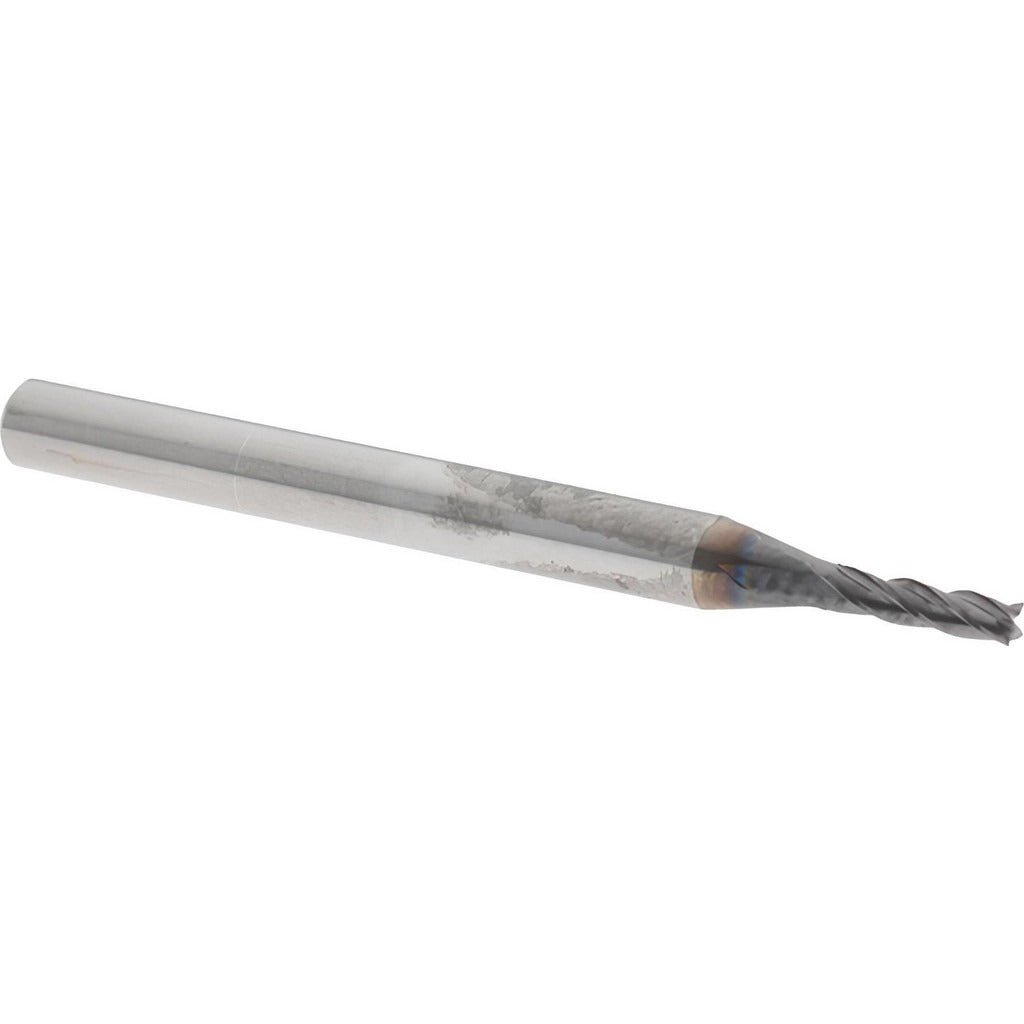

Value Collection 30607 Square End Mill 1/16 in 4 Flute Carbide

Product Description

The VALUE COLLECTION 30607 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. With a 1/16 inch (0.0625 inch) mill diameter and a 1/4 inch length of cut, this tool removes material cleanly in tight spaces and fine-detail work. The 4-flute, right-hand spiral design with a 30-degree helix angle promotes efficient chip evacuation and a smooth finish. A TiAlN coating extends tool life by increasing heat and wear resistance at the cutting edge. The micrograin carbide construction maintains rigidity and dimensional accuracy across the cut zone. Licensed machinists and CNC operators are the primary users of this end mill.

This end mill suits light to moderate material removal in ferrous and non-ferrous metals, hardened steels, and similar materials where a small-diameter tool is required. The 1/8 inch shank fits standard collets and tool holders used on CNC machining centers and manual mills. The regular-length, single-end configuration makes it a practical choice for production environments running Series 3200 tooling. Its centercutting capability allows plunge entry directly into the workpiece.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance
• TiAlN coating increases heat resistance and extends tool life
• 4 right-hand spiral flutes with 30-degree helix angle for efficient chip evacuation
• Centercutting design allows direct plunge entry
• Mill diameter tolerance of +0.000 / -0.002 inches for tight dimensional control
• Shank diameter tolerance of +0.0000 / -0.00023 inches for accurate collet fit

Compatibility

Designed as a standard small-diameter square end mill compatible with collets and tool holders accepting a 1/8 inch shank diameter, common on CNC machining centers and manual knee mills.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle powered down and locked out. Ensure the collet and tool holder are clean and free of chips before seating the 1/8 inch shank to the correct insertion depth. Torque the collet nut to the tool holder manufacturer's specification. Inspect the cutting edges under magnification before each use, as small-diameter carbide end mills are susceptible to chipping if mishandled or dropped.
