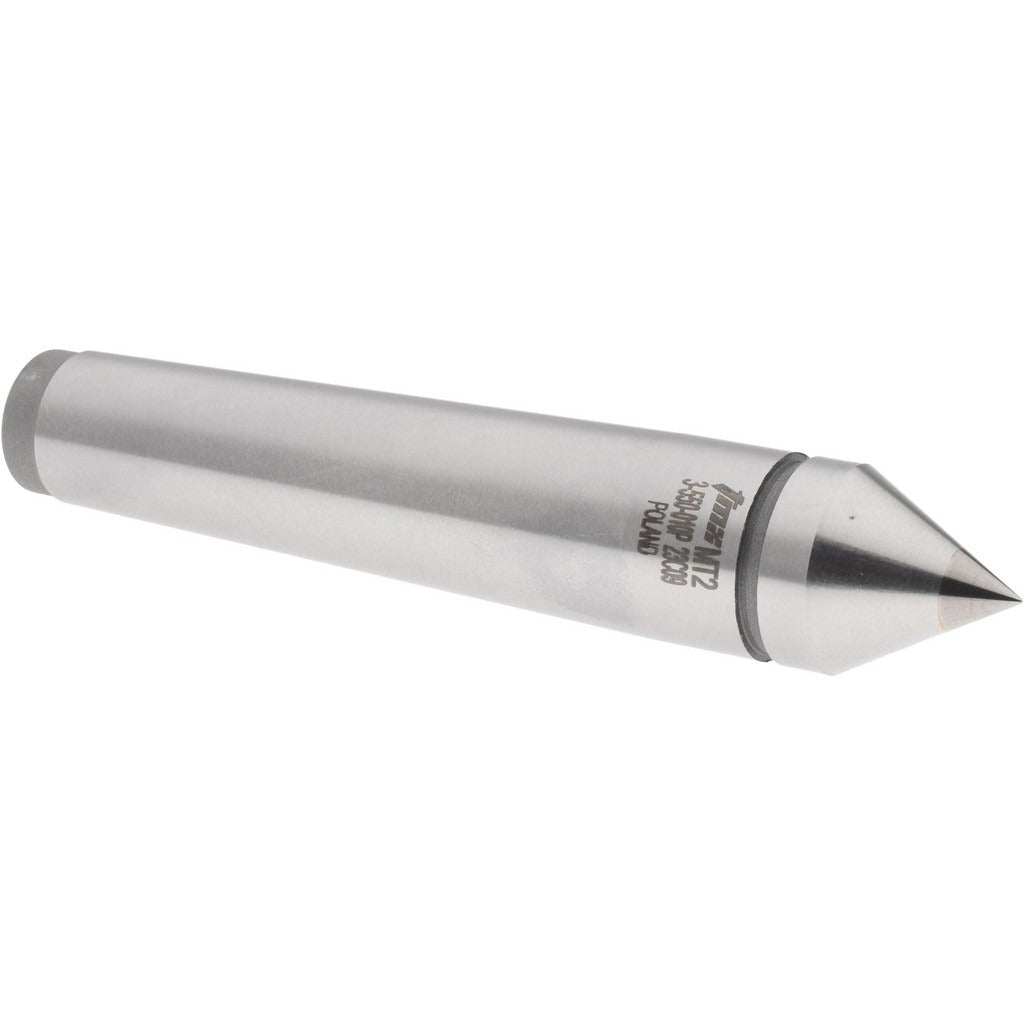

Value Collection 3-550-010P Solid Dead Center 2MT

Product Description

The VALUE COLLECTION 3-550-010P is a carbide-tipped steel solid dead center designed for use in lathe tailstocks and other machine tool applications requiring precise workpiece support. Built on a 2MT (No. 2 Morse Taper) shank, this center features a 0.71-inch head diameter and a 0.28-inch tip diameter, delivering reliable point contact for accurate alignment during turning operations. The carbide tip resists wear and heat buildup better than plain steel, extending service life under continuous cutting loads. This is a standard-point, solid (non-rotating) center intended for experienced machinists and toolroom professionals.

This dead center is suited for manual lathes and machining centers where the workpiece or center is lubricated and rotated at controlled speeds. It is commonly used in toolrooms, job shops, and production environments for turning between centers. The solid construction provides greater rigidity than live centers, making it the preferred choice when maximum concentricity is required at lower spindle speeds. Install with appropriate center lubricant to prevent galling at the point contact interface.

Key Features

• Carbide-tipped point for extended wear resistance under continuous cutting loads
• No. 2 Morse Taper (2MT) shank for direct fit in standard tailstock bores
• Standard point style with 0.71-inch head diameter and 0.28-inch tip diameter
• Overall length of 3.94 inches for compact, rigid support
• Solid center design maximizes concentricity and rigidity at the point
• Carbide-tipped steel construction balances toughness and hardness

Compatibility

Designed as a standard-fit replacement or spare solid dead center for manual lathes and machine tool tailstocks accepting a No. 2 Morse Taper shank.

Installation Notes

Installation is performed by qualified machinists familiar with lathe setup and Morse Taper tooling. Power down and lock out the lathe spindle before seating or removing the center from the tailstock bore. Clean the Morse Taper bore and shank surfaces thoroughly before insertion to ensure full contact and prevent fretting. Because this is a solid dead center, always apply a suitable center lubricant to the workpiece center hole to reduce friction and prevent tip damage during rotation.
