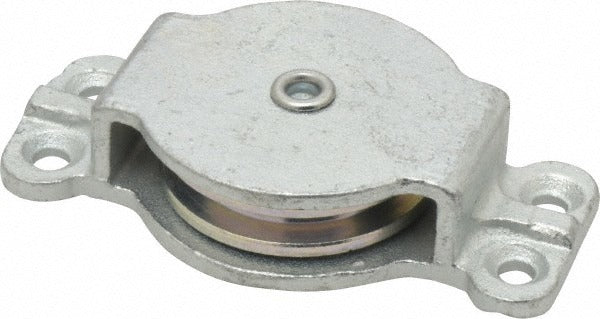

Value Collection 3-010-12-86- Guidance Pulley Sheave

Product Description

The VALUE COLLECTION 3-010-12-86- is a single closed side mount guidance pulley sheave designed for wire rope applications. The sheave features a 2 inch outside diameter and accepts wire rope with a 1/4 inch diameter. The mounting hole accommodates diameters ranging from 0.209 inches to 0.22 inches, allowing fitment to a variety of fixed mount configurations. Constructed from iron with a galvanized finish, this pulley is built to resist corrosion in exposed or moderately harsh environments. It is suited for rigging, cable guidance, and tensioning setups where a compact, closed-side design is required to keep the rope seated on the sheave groove.

This guidance pulley sheave is appropriate for light to medium-duty wire rope rigging applications in industrial, marine, construction, or maintenance settings. The closed side mount design helps retain the rope within the groove during operation, reducing the risk of rope derailment. Installers working with small-diameter wire rope runs will find this sheave useful for redirecting or guiding cable paths in fixed-mount installations where space is limited and a single-sheave solution is sufficient.

Key Features

• 2 inch outside diameter sheave sized for 1/4 inch diameter wire rope
• Closed side mount design retains rope within the groove during operation
• Mounting hole diameter range of 0.209 inches to 0.22 inches for flexible mounting
• Iron construction with galvanized finish for corrosion resistance
• Single-sheave configuration for compact cable guidance installations

Compatibility

Designed as a direct-fit guidance pulley sheave for fixed-mount wire rope rigging systems requiring a 2 inch OD sheave with 1/4 inch rope capacity and a closed side mount configuration.

Installation Notes

Installation is typically performed by qualified riggers or maintenance technicians familiar with wire rope systems. Ensure all tension is relieved from the wire rope and any connected loads are secured before removing or installing the sheave. Verify that the mounting fastener diameter falls within the 0.209 inch to 0.22 inch mounting hole specification before assembly. Follow applicable ASME or OSHA rigging standards for load ratings and safe working load limits appropriate to the application.
