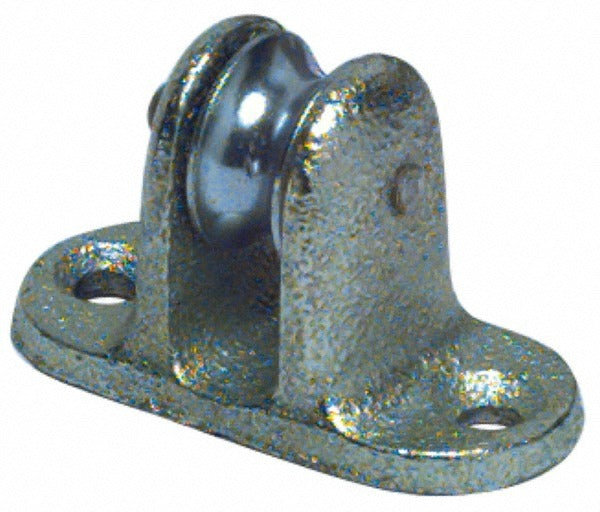

Value Collection 3-010-10786- Guidance Pulley Sheave

Product Description

The VALUE COLLECTION 3-010-10786- is a single upright mount guidance pulley sheave designed to redirect fibrous rope in light-duty rigging and material-handling applications. The sheave measures 11/16 inch in outside diameter and accepts 1/4 inch diameter fibrous rope. Mounting hole diameter ranges from 0.144 inch to 0.155 inch, allowing fitment to standard upright mount hardware. The body is cast from malleable iron and finished with a galvanized coating for corrosion resistance in moderate-exposure environments. This type of pulley is typically installed by maintenance technicians, millwrights, or rigging professionals who need a compact, fixed-mount guide point for rope-based systems.

This guidance pulley sheave is suited for light industrial, facility maintenance, and general rigging setups where fibrous rope must be routed around a fixed point. The upright mount configuration positions the sheave vertically, making it appropriate for overhead or lateral rope-guidance runs. Its compact outside diameter makes it a practical choice for space-constrained installations or assemblies that require multiple redirect points in close proximity.

Key Features

• 11/16 inch outside diameter sheave sized for 1/4 inch fibrous rope
• Mounting hole diameter range of 0.144 inch to 0.155 inch for standard upright mount hardware
• Malleable iron construction for durability under repeated load cycles
• Galvanized finish provides corrosion resistance in moderate-exposure environments
• Single upright mount design keeps the sheave fixed and correctly oriented during operation

Compatibility

Designed as a general-purpose replacement guidance pulley sheave for single upright mount assemblies that route 1/4 inch diameter fibrous rope and require a mounting hole in the 0.144 inch to 0.155 inch range.

Installation Notes

Installation is typically performed by a qualified millwright or maintenance technician. Relieve all tension from the rope and de-energize any associated mechanical drive before removing the existing sheave. Verify that the mounting post or pin diameter falls within the 0.144 inch to 0.155 inch specified range before securing the pulley. Inspect the rope for wear at the contact point after installation and before returning the system to service.
