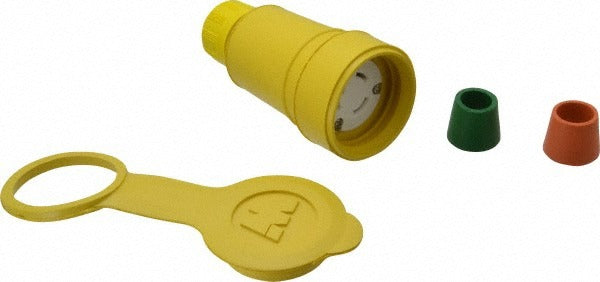

Value Collection 27W47 L5-20 125V 20A Locking Connector

Product Description

The VALUE COLLECTION 27W47 is an industrial-grade locking connector designed for 125-volt, 20-amp single-phase applications. Built with a NEMA L5-20 configuration, this 2-pole, 3-wire connector provides a secure twist-lock connection that resists accidental disconnection under load. The rubber housing carries an IP67 ingress protection rating, meaning it is rated for dust-tight and temporary water-immersion conditions. This connector is suited for licensed electricians and qualified industrial maintenance technicians working in environments where moisture exposure and mechanical stress are primary concerns.

This connector is intended for use in industrial and commercial settings where a NEMA L5-20 twist-lock connection is required at 125 volts and up to 20 amps. Typical applications include portable power distribution, temporary power setups on job sites, generator connections, and industrial equipment wiring. The non-grounding, 2-pole design fits applications where a separate equipment ground conductor is not part of the circuit configuration. The water-tight construction makes it appropriate for outdoor or washdown-area installations.

Key Features

• NEMA L5-20 twist-lock configuration for secure, vibration-resistant connections
• IP67 rated — dust-tight and resistant to temporary water immersion
• Rubber housing provides flexibility and durability in demanding environments
• Non-grounding, 2-pole, 3-wire design for compatible circuit types
• Rated 20 amps at 125 volts, single phase
• CSA Certified and UL Listed for verified safety compliance

Compatibility

Designed as an OEM-style replacement or direct-fit connector for industrial and commercial circuits requiring a NEMA L5-20 twist-lock interface at 125 volts and 20 amps.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before making any wiring connections. Verify that the supply circuit is rated for 20 amps at 125 volts and that the NEMA L5-20 configuration matches the mating inlet or receptacle. Confirm IP67 sealing integrity after assembly when deploying in wet or washdown locations.
