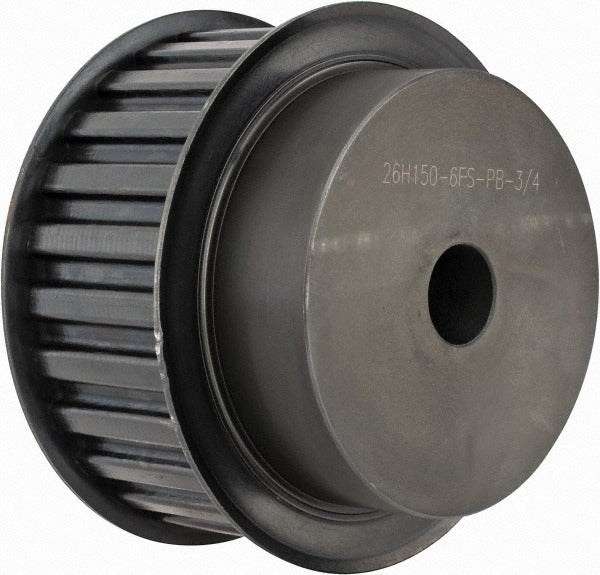

Value Collection 26H1506FSPB3/4 Timing Belt Pulley

Product Description

The VALUE COLLECTION 26H1506FSPB3/4 is a 26-tooth timing belt pulley designed for precision power transmission applications. It features a 3/4-inch inside bore diameter and a 4.084-inch outside diameter, with a pitch diameter of 4.138 inches. The pulley accommodates a 1-1/2-inch belt width and is constructed from steel cast iron for durability under continuous load. Machinists, millwrights, and mechanical technicians install this type of component in drive systems where accurate speed ratios and positive, slip-free belt engagement are required.

This timing belt pulley is suited for use in industrial machinery, conveyor systems, and other mechanical drive assemblies where H-series timing belts are used. The 3/4-inch bore fits standard shaft sizes common in light to medium industrial equipment. It is appropriate for both OEM assembly builds and field replacement applications where the original pulley has worn tooth profiles or a damaged bore.

Key Features

• 26-tooth H-series profile for positive, no-slip belt engagement
• 3/4-inch inside bore diameter fits standard shaft sizes
• 4.084-inch outside diameter with 4.138-inch pitch diameter for accurate speed ratio calculation
• 1-1/2-inch belt width capacity matches standard H-series timing belts
• Steel cast iron construction provides strength and wear resistance under continuous operation

Compatibility

Designed as an OEM-style replacement or new-installation timing belt pulley for H-series timing belt drive systems requiring a 26-tooth pulley with a 3/4-inch bore.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. Disconnect and lock out all power to the drive system before removing or installing the pulley. Verify shaft diameter and keyway dimensions against the bore specification before mounting. Confirm belt tension and alignment with a straightedge or laser alignment tool after installation to prevent premature belt or bearing wear.
