Value Collection 2673322540 Air Manifold 1/4 Inch Npt

Product Description

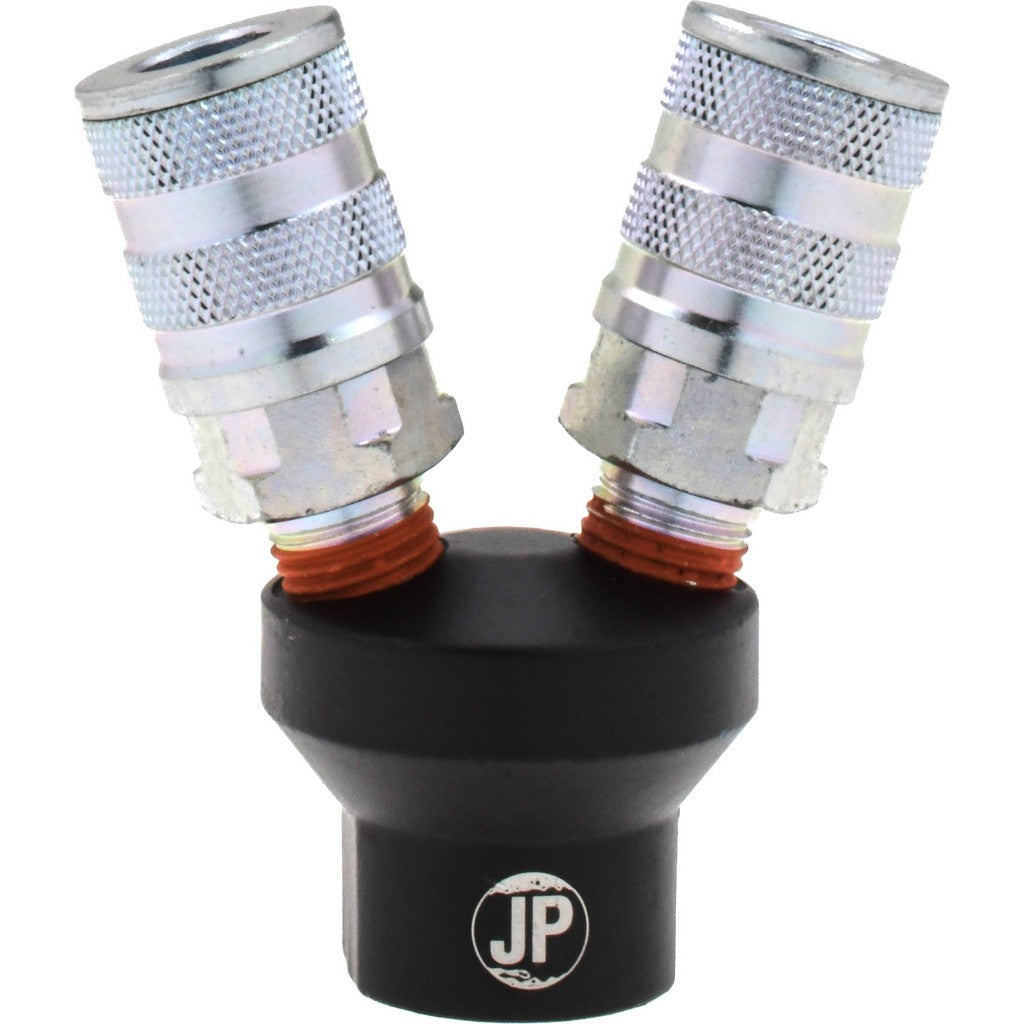

The VALUE COLLECTION 2673322540 is a two-outlet air manifold designed to split a single compressed-air supply line into two separate outlet circuits. Built with an aluminum body and steel hardware, it accepts a 1/4-inch NPT inlet and delivers flow through two 1/4-inch NPT outlet ports. At 1 pound and measuring 2.56 inches in length, 0.75 inches in width, and 4 inches in height, this manifold is compact enough for tight installations on portable compressors, inline distribution points, and shop air systems. Licensed HVAC technicians, plumbers, and general shop maintenance personnel are the typical installers.

This manifold is suited for residential and light commercial compressed-air distribution where a single feed line needs to supply two tools or downstream circuits simultaneously. The TruFlate and automotive interchange coupler compatibility makes it a practical fit in automotive service bays, fabrication shops, and mechanical rooms where standard 1/4-inch NPT quick-connect fittings are already in use. Its aluminum body keeps weight low while maintaining adequate durability for typical shop-air pressure ranges.

Key Features

• 1/4-inch NPT inlet and dual 1/4-inch NPT outlets for standard compressed-air line integration
• Aluminum body construction reduces overall assembly weight
• Steel hardware components for added mechanical durability at connection points
• Compatible with TruFlate and automotive interchange coupler types
• Compact form factor: 2.56 inches long, 0.75 inches wide, 4 inches tall
• Single inlet port to two outlet ports for basic air-line splitting applications

Compatibility

Designed as a standard-fitment replacement or addition for compressed-air distribution systems using 1/4-inch NPT connections with TruFlate or automotive interchange coupler types.

Installation Notes

Installation is typically performed by a qualified mechanic or HVAC technician. Depressurize and isolate the compressed-air supply line completely before removing any fittings or installing this manifold. Apply thread sealant tape or liquid thread sealant to all NPT connections per standard practice. Verify all connections are leak-free before returning the system to service.
