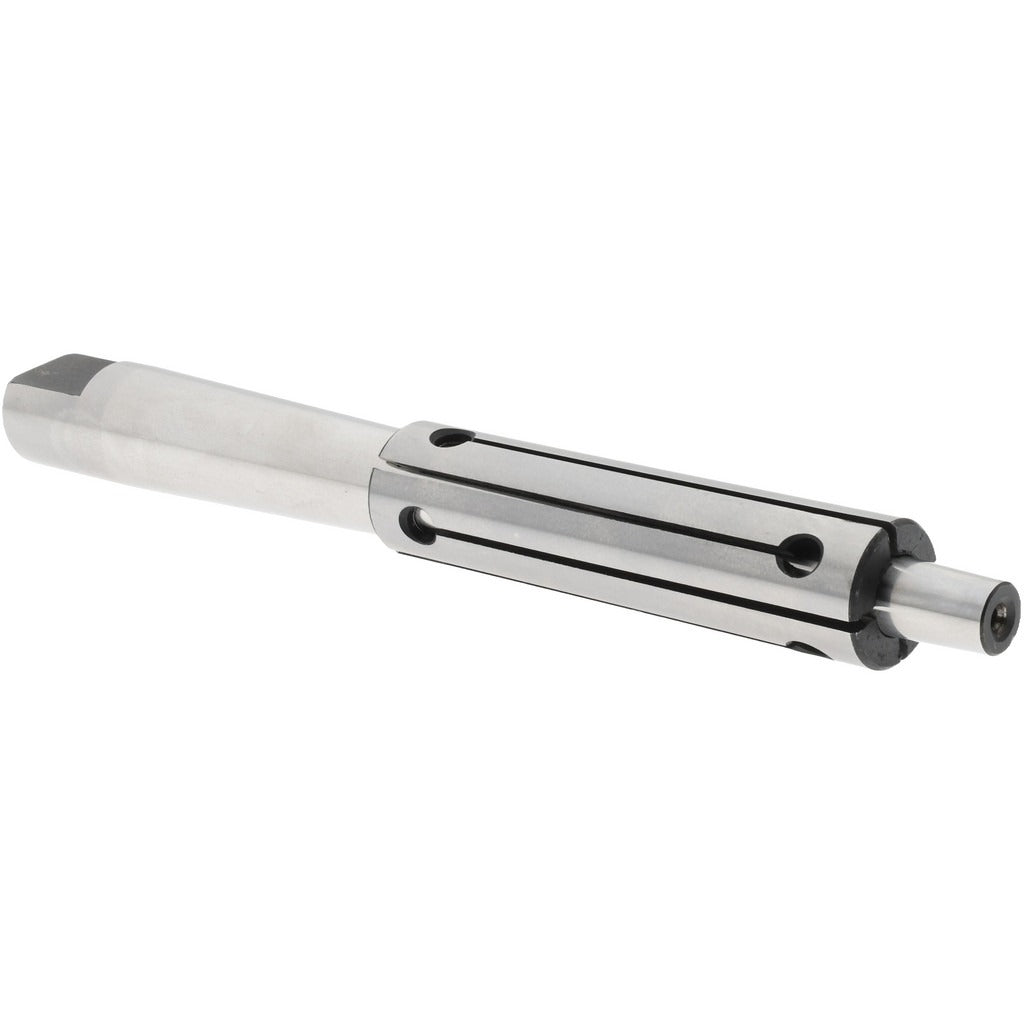

Value Collection 262-3056 Expanding Lathe Mandrel

Product Description

The VALUE COLLECTION 262-3056 is an expanding lathe mandrel designed to hold workpieces from the inside bore during turning operations. The mandrel grips bores ranging from 3/4 to 7/8 inches, allowing secure workholding without external clamping. It features a 3/4-inch shank diameter for mounting in the lathe headstock or tailstock, a 3-1/4-inch sleeve length, and a 7-inch arbor length. The expanding design allows the mandrel to seat firmly inside the bore of a workpiece as it is tightened, keeping the part concentric during machining. Machinists and tool and die makers use this type of mandrel for finish turning of bored or reamed parts.

This mandrel is suited for manual and engine lathe applications in machine shops, toolrooms, and production environments. It is used when a workpiece must be turned on its outer diameter after a bore has already been machined to size. The 3/4 to 7/8-inch grip range makes it appropriate for medium-bore workpieces such as bushings, sleeves, gears, and similar cylindrical parts that require concentric outside-diameter turning.

Key Features

• Grip range of 3/4 to 7/8 inches accommodates medium-bore workpieces
• 3/4-inch shank diameter for standard headstock or tailstock mounting
• 3-1/4-inch sleeve length provides broad contact area for stable workholding
• 7-inch arbor length allows clearance for a range of workpiece sizes
• Expanding design centers the workpiece concentrically during outside-diameter turning

Compatibility

Designed as an OEM-style replacement and standard toolroom mandrel for manual engine lathes accepting a 3/4-inch shank, suitable for workpieces with bored or reamed inside diameters between 3/4 and 7/8 inches.

Installation Notes

Installation is performed by qualified machinists familiar with lathe workholding practices. Before mounting, ensure the lathe is powered down and the spindle is fully stopped. Insert the mandrel shank into the headstock or between centers as appropriate for the setup, and expand the sleeve firmly into the workpiece bore before beginning the cut. Do not exceed the stated grip range, as over-expansion can damage the workpiece bore or the mandrel sleeve.
