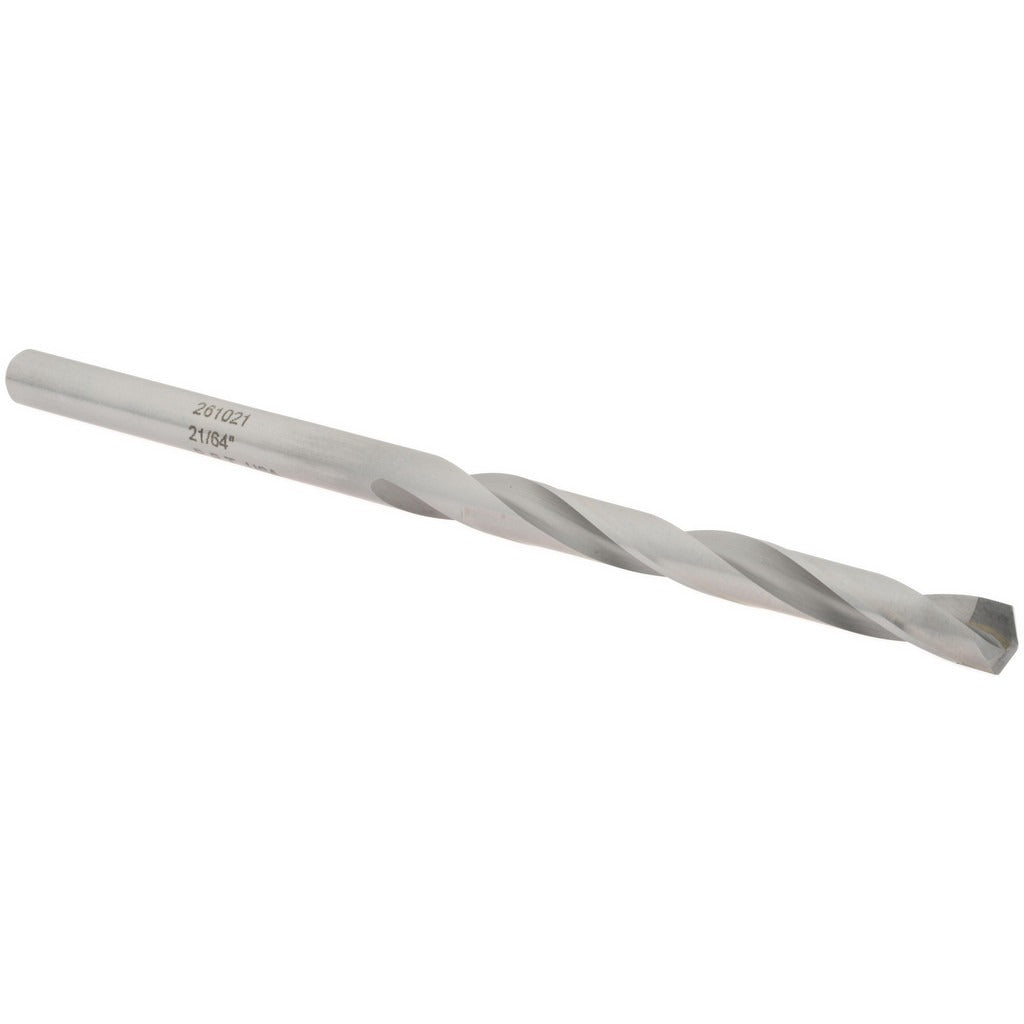

Value Collection 261021 Aircraft Extension Drill Bit 21/64

Product Description

The VALUE COLLECTION 261021 is a carbide-tipped aircraft extension drill bit designed for deep-reach drilling applications where standard-length bits cannot access the work area. Built to Series 2610 specifications, it features a 21/64-inch (0.3281-inch decimal) diameter and a 3-5/16-inch flute length on a 6-inch overall length body. The 135-degree split point geometry is self-centering, reducing the need for a center punch and minimizing walking on hard or curved surfaces. Right-hand spiral flutes with a tapered web configuration and web-thinned point reduce thrust and improve chip evacuation during through-hole drilling in metal.

This drill bit is suited for general-purpose metal drilling in aviation, sheet metal fabrication, HVAC ductwork, and structural applications where extended reach is required. The straight-cylindrical shank seats in standard 3-jaw chucks on corded drills, drill presses, and right-angle drill attachments commonly used in tight-clearance installations. The bright/uncoated finish makes it appropriate for drilling aluminum, mild steel, and similar materials encountered in maintenance and fabrication work. It meets NAS 907 standards, making it relevant for aerospace and aircraft structural repair applications.

Key Features

• 135-degree split point is self-centering and reduces walking on smooth or contoured surfaces
• Carbide-tipped construction provides extended service life in abrasive and harder metal materials
• 6-inch overall length with 3-5/16-inch flute length for deep-reach and extension drilling
• Tapered web with web thinning reduces drilling thrust and improves chip clearance
• Straight-cylindrical shank fits standard 3-jaw drill chucks without an adapter
• Meets NAS 907 standards for aircraft and aerospace drilling applications

Compatibility

Designed as a general-purpose aircraft extension drill bit conforming to NAS 907 standards, compatible with any standard 3-jaw chuck capable of accepting a 21/64-inch straight-cylindrical shank.

Installation Notes

Secure the shank fully in a 3-jaw chuck before drilling to prevent runout or slippage during operation. Carbide-tipped drill bits are brittle and should not be used in applications with significant lateral loading or flexing, as this can chip or fracture the cutting tip. Use appropriate cutting fluid or lubricant when drilling steel to extend tip life and improve hole quality. Ensure the workpiece is clamped securely before beginning the cut.
