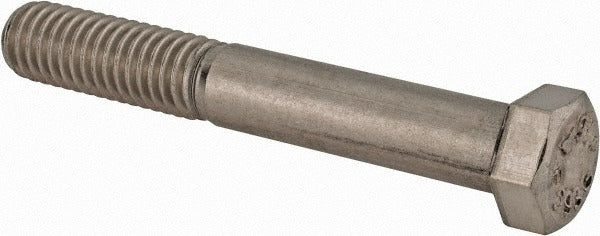

Value Collection 2466 Hex Head Cap Screw 7/16-14 X 3 in 316 Ss

Product Description

The VALUE COLLECTION 2466 is a 7/16-14 UNC hex head cap screw measuring 3 inches in length under the head, manufactured from Grade 316 stainless steel with no additional coating. Partially threaded along the shank, this fastener is suited for applications requiring a bearing surface or shoulder against the joint. Grade 316 stainless steel provides enhanced corrosion resistance compared to Grade 304, making it appropriate for wet, chemical, or marine-adjacent environments. Installation requires a standard hex wrench or socket. This screw is commonly installed by maintenance technicians, plumbers, HVAC mechanics, and industrial service professionals working in corrosive or high-moisture settings.

This fastener is used in a broad range of industrial and mechanical assemblies where corrosion resistance is a priority. Typical applications include equipment mounting in wet mechanical rooms, pump and valve assemblies, pool and water treatment equipment, and general structural fastening where stainless steel is specified by design. The 7/16-14 UNC thread form is a coarse-thread standard compatible with standard tapped holes and nuts of the same specification. The partial threading provides a smooth shank section useful in applications where the screw passes through a clearance hole before engaging a tapped bore.

Key Features

• Grade 316 stainless steel construction for superior corrosion and chloride resistance
• 7/16-14 UNC coarse thread standard for broad tooling and hardware compatibility
• 3-inch length under head accommodates thicker joint stacks
• Partially threaded shank provides a smooth bearing surface through clearance holes
• Uncoated finish preserves natural stainless steel surface properties
• Hex head drive for installation with standard sockets or wrenches

Compatibility

Designed as a standard 7/16-14 UNC hex head cap screw suitable for use with any tapped hole, nut, or threaded insert conforming to the 7/16-14 UNC thread specification.

Installation Notes

Install using an appropriately sized hex socket or open-end wrench rated for the fastener size. De-energize or depressurize the assembly before disassembling fastened joints on live mechanical systems. Avoid mixing stainless steel fasteners with dissimilar metals in highly conductive or submerged environments to reduce galvanic corrosion risk. Follow applicable mechanical and structural codes for torque and joint requirements specific to the assembly being serviced.
