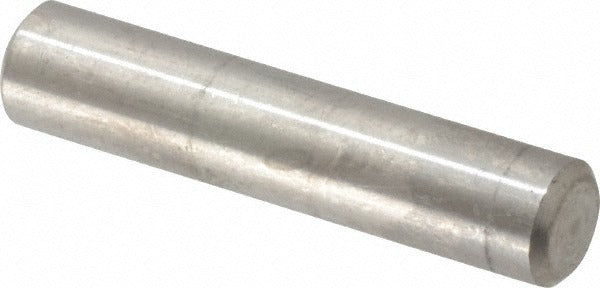

Value Collection 245226PR Precision Dowel Pin 5/16x1.5in SS316

Product Description

The VALUE COLLECTION 245226PR is a precision dowel pin designed for accurate component alignment and location in mechanical assemblies. Manufactured from Grade 316 stainless steel, this pin delivers corrosion resistance suitable for demanding environments including wet, chemical-exposed, or marine service conditions. The pin measures 5/16 inch in diameter and 1-1/2 inches in overall length, with a diameter tolerance of 0.0002 inches for tight, reliable fits. Both ends are beveled to ease insertion into bored holes. The bright, uncoated finish meets ASME B18.8.2 standards. Machinists, tool and die makers, and maintenance technicians install this type of pin to maintain precise part-to-part registration in fixtures, molds, dies, and production tooling.

This pin is suited for use in precision mechanical assemblies where hole-to-hole alignment is critical. Typical applications include jig and fixture construction, die sets, machine bases, and fabricated assemblies requiring repeatable positioning. Grade 316 stainless steel makes it a practical choice in food processing equipment, marine hardware, and chemical plant machinery where carbon steel would be at risk of rust or corrosion. Sold individually; minimum order quantity is 10 pieces.

Key Features

• Grade 316 stainless steel construction for superior corrosion resistance in wet and chemical environments
• Diameter tolerance of 0.0002 inches for precision fit in close-tolerance bored holes
• Beveled ends on both sides for easy, guided insertion
• Bright, uncoated finish meets ASME B18.8.2 fastener standard
• 5/16 inch diameter by 1-1/2 inch length for common tooling and fixture applications

Compatibility

Designed as an OEM-style precision locating pin for use in mechanical fixtures, dies, jigs, and assemblies requiring ASME B18.8.2 compliant precision dowel pins in a 5/16 inch diameter.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a press or mallet with an appropriate driver. The receiving hole should be reamed to the correct tolerance class before installation to avoid damaging the pin or distorting the bore. Always de-energize and lock out any machinery before servicing components that contain dowel pins. Do not force oversized pins into undersized bores, as this can cause bore damage or pin failure.
