Value Collection 245004PR Dowel Pin 1/16x1/4 in Ss Grade 316

Product Description

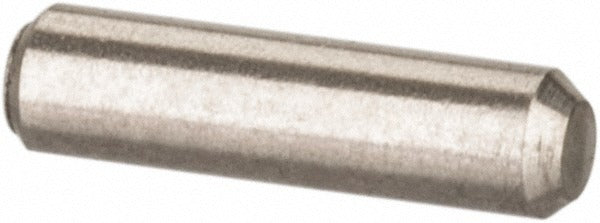

The VALUE COLLECTION 245004PR is a precision dowel pin manufactured from Grade 316 stainless steel with a bright, uncoated finish. Measuring 1/16 inch in diameter and 1/4 inch in overall length, this pin conforms to ASME B18.8.2 dimensional standards and features beveled ends for controlled, repeatable alignment. The diameter tolerance is held to 0.0002 inches, making it suitable for close-tolerance locating and alignment applications where dimensional consistency is critical. Installation is typically performed by machinists, tool-and-die makers, and maintenance technicians working with precision assemblies.

This dowel pin is used in precision fixturing, jig and fixture construction, mold alignment, and general mechanical assembly where accurate part location is required. The Grade 316 stainless steel construction offers improved corrosion resistance compared to standard 303 or 304 grades, making it appropriate for use in wet, chemical, or marine environments where component integrity must be maintained over time. These pins are sold individually but carry a minimum order quantity of 100 units, suited to production and shop-stock purchasing.

Key Features

• Grade 316 stainless steel construction for elevated corrosion resistance
• Diameter tolerance of 0.0002 inches for close-tolerance alignment applications
• Beveled ends for easier entry into mating holes during assembly
• Bright, uncoated finish — no coating thickness to account for in fit calculations
• Conforms to ASME B18.8.2 precision dowel pin standard
• Lightweight at 0.01 pounds per pin, suitable for compact assemblies

Compatibility

Designed as a standard ASME B18.8.2 precision dowel pin for use in any application requiring a 1/16-inch diameter locating or alignment pin in stainless steel.

Installation Notes

Precision dowel pins are installed by machinists or assembly technicians using a press, arbor press, or mallet with a properly sized driver — never strike the pin directly with a metal hammer. Mating holes should be reamed to the appropriate tolerance class per ASME B18.8.2 before installation. Ensure the receiving hole is clean and free of burrs or debris to avoid galling the pin surface. When removing pins, use a pin punch from the opposite end of the hole to prevent bore damage.
