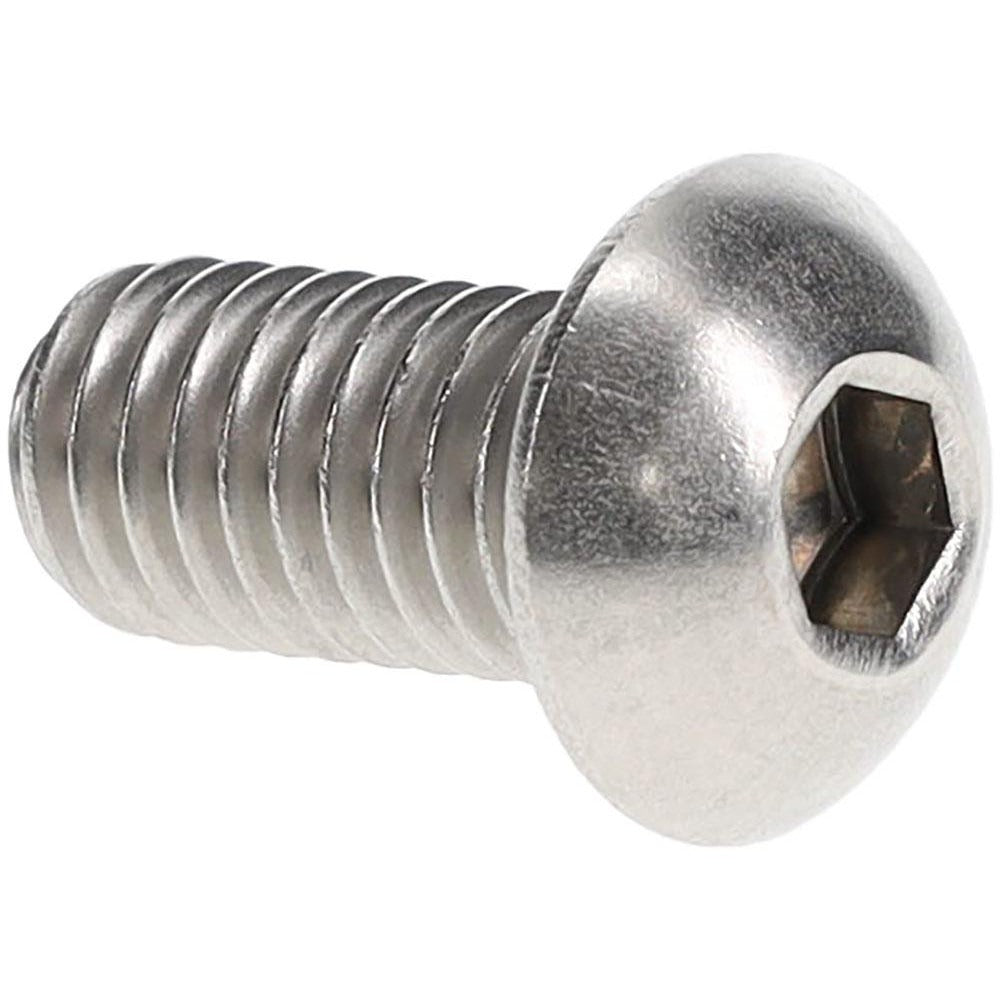

Value Collection 242302 Button Socket Cap Screw 3/8-16 X 3/4

Product Description

The VALUE COLLECTION 242302 is a button socket cap screw designed for mechanical assemblies where a low-profile head and high corrosion resistance are required. Featuring a 3/8-16 UNC thread and a 3/4-inch length under the head, this fastener is driven with a 7/32-inch hex socket. Constructed from 18-8 stainless steel with a bright, uncoated finish, it delivers reliable performance in environments exposed to moisture or corrosive conditions. The button head profile reduces protrusion in finished assemblies and distributes clamping load over a wider bearing surface than a standard socket cap head.

This fastener is suited for use in industrial, commercial, and light fabrication applications where a flush or near-flush fastener profile is preferred. Common install scenarios include panel mounting, machine guards, enclosures, and structural assemblies where tool access is limited to a hex key. It conforms to ANSI/ASME B18.3 standards, making it a recognized choice for engineers and tradespeople working to documented specifications.

Key Features

• 3/8-16 UNC thread with Class 3A thread fit for precise, tight-tolerance engagement
• 18-8 stainless steel construction for corrosion resistance in wet or outdoor environments
• Button head profile provides a low-profile, wide-bearing-surface alternative to standard socket cap screws
• 7/32-inch hex socket drive for use with standard hex keys or socket drivers
• Right-hand thread direction, bright uncoated finish
• Conforms to ANSI/ASME B18.3 fastener standard

Compatibility

Designed as a standard-dimension ANSI/ASME B18.3 button socket cap screw suitable for any application requiring a 3/8-16 UNC threaded fastener with a 3/4-inch grip length and button head profile.

Installation Notes

Installation is performed with a 7/32-inch hex key or socket driver. Ensure mating threads are clean and free of debris before driving. Power down or de-energize any equipment before accessing fastener locations on live assemblies. Do not exceed the torque capacity appropriate for 18-8 stainless steel fasteners of this diameter, as stainless hardware is susceptible to galling if driven too aggressively without lubrication.
