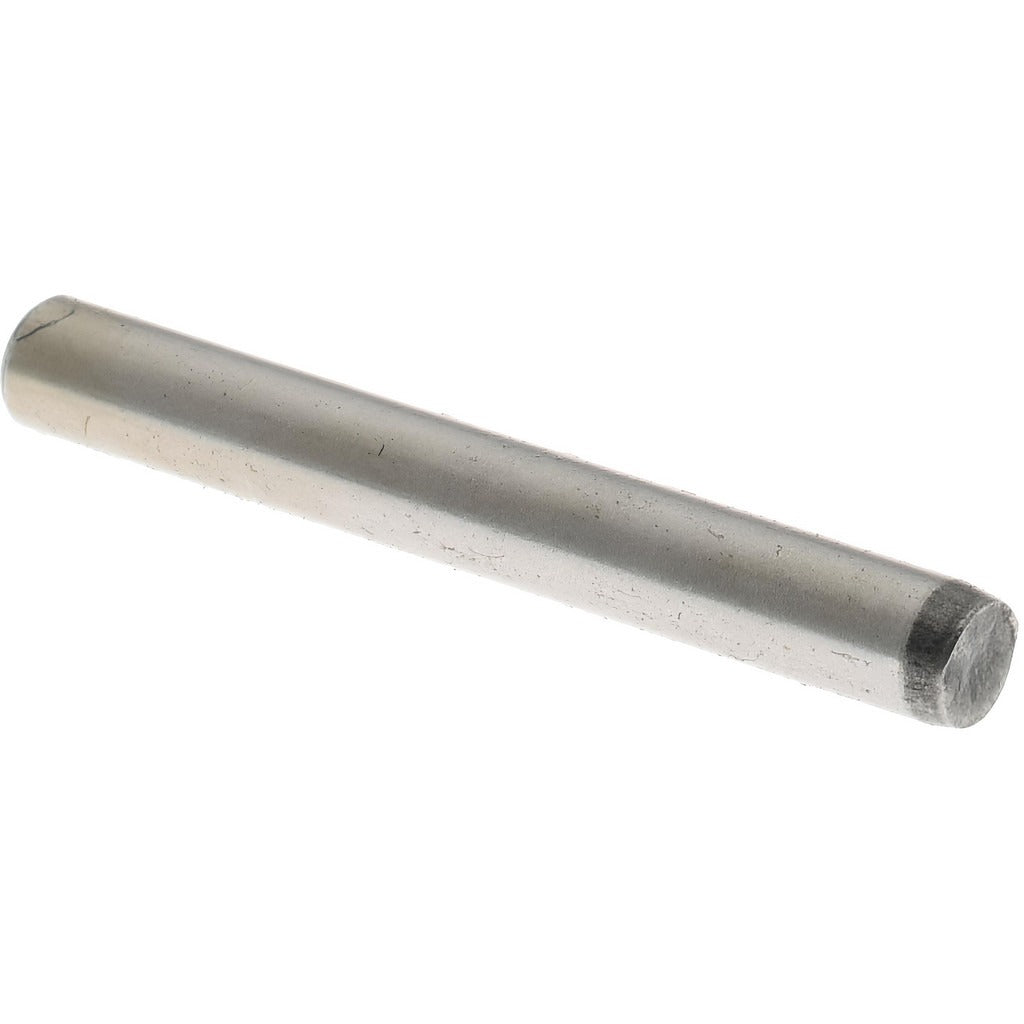

Value Collection 241064PR Precision Dowel Pin 3/32x3/4 in

Product Description

The VALUE COLLECTION 241064PR is a precision dowel pin machined from Grade 8 alloy steel, designed for accurate alignment and location of mating components in mechanical assemblies. At 3/32 inch in diameter and 3/4 inch in length, this pin meets ASME B18.8.2 standards and carries a hardness rating of 50-58 HRC, delivering reliable performance under shear loading conditions. One end is beveled for guided insertion, and the opposite end is rounded. Breaking strength is rated at 1,800 pounds in double shear. Machinists, tool and die makers, and precision assembly technicians install these pins where tight tolerances are required.

This pin is suited for use in precision jigs, fixtures, dies, and machine components where repeatable part alignment is critical. The 3/32-inch diameter and 3/4-inch length fit close-tolerance bored holes in tooling plates, mold bases, and mechanical sub-assemblies across light manufacturing and industrial maintenance environments. The alloy steel construction and Grade 8 material designation make it appropriate for applications involving moderate to high shear loads. Sold individually; minimum order quantity is 100 units.

Key Features

• Grade 8 alloy steel construction with 50-58 HRC hardness for durability under shear stress
• Meets ASME B18.8.2 fastener standard for precision dowel pin dimensions and tolerances
• Diameter tolerance of 0.0002 inch for reliable close-tolerance fits
• One beveled end and one rounded end for controlled, guided insertion
• 1,800-pound double-shear breaking strength
• Lightweight at 0.01 pounds per pin, suitable for high-volume fixture builds

Compatibility

Designed as an OEM-style and aftermarket replacement precision dowel pin for use in standard 3/32-inch reamed holes conforming to ASME B18.8.2 tolerances in jigs, fixtures, dies, and mechanical assemblies.

Installation Notes

Precision dowel pins are typically installed by machinists or tool and die technicians using a press or mallet into reamed, close-tolerance holes. Ensure the mating hole is clean, properly reamed to the required tolerance, and free of burrs before pressing the pin in place. De-energize and lock out any associated machinery before performing pin installation or removal. Do not force a pin into an undersized or unfinished hole, as this can cause bore damage or pin fracture.
