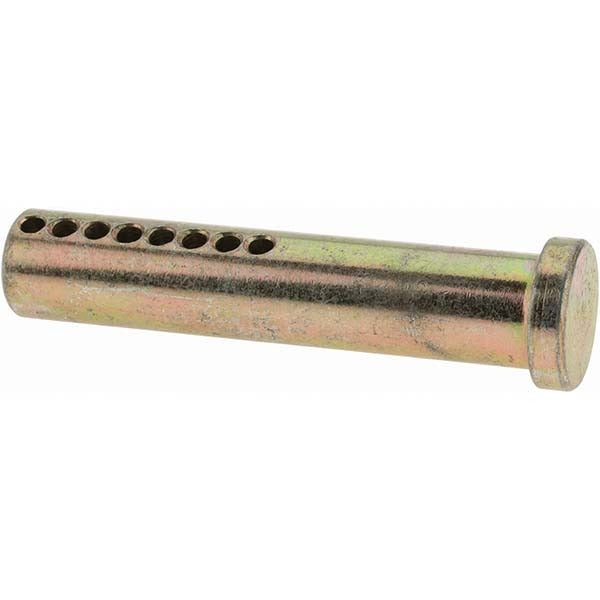

Value Collection -2300-5/8 Adjustable Clevis Pin 5/8 in

Product Description

The VALUE COLLECTION -2300-5/8 is an adjustable clevis pin designed for use in mechanical linkage assemblies, load-bearing connections, and actuator rod-end applications. The pin measures 5/8 inches in diameter with an overall length (OAL) of 3 inches and a usable length of 2-3/4 inches. A 9/64 inch cross-hole accommodates a cotter pin or snap ring for positive retention. Constructed from steel with a zinc-plated finish, this clevis pin resists corrosion in light-duty indoor and sheltered environments. Maintenance technicians, millwrights, and HVAC service professionals install this type of hardware in damper linkages, valve actuators, and general mechanical assemblies where adjustable pin connections are required.

This adjustable clevis pin suits residential and light commercial mechanical systems that rely on clevis-type rod-end connections. Common applications include HVAC damper control linkages, pneumatic and electric actuator connections, and general industrial linkage assemblies. The adjustable design allows for fine-tuning of linkage geometry during installation or commissioning. Sold in quantities of 10 per package, this pin is a practical stocking item for service vans and shop inventory.

Key Features

• 5/8 inch pin diameter for robust linkage connections
• 3 inch overall length with 2-3/4 inch usable length
• 9/64 inch retention hole accepts standard cotter pins or snap rings
• Zinc-plated steel construction for corrosion resistance in sheltered environments
• Adjustable design allows linkage geometry fine-tuning at installation
• Packaged in quantities of 10 for convenient shop and van stocking

Compatibility

Designed as a standard adjustable clevis pin for mechanical linkage assemblies requiring a 5/8 inch diameter pin with a 3 inch overall length and a 9/64 inch retention-hole cross-bore.

Installation Notes

Installation is typically performed by millwrights, HVAC technicians, or maintenance mechanics. De-energize and lock out all associated actuators or control systems before removing or installing clevis pins. Always secure the pin with an appropriately sized cotter pin or snap ring through the 9/64 inch retention hole to prevent unintended disengagement. Verify linkage alignment and usable engagement length before returning the assembly to service.
