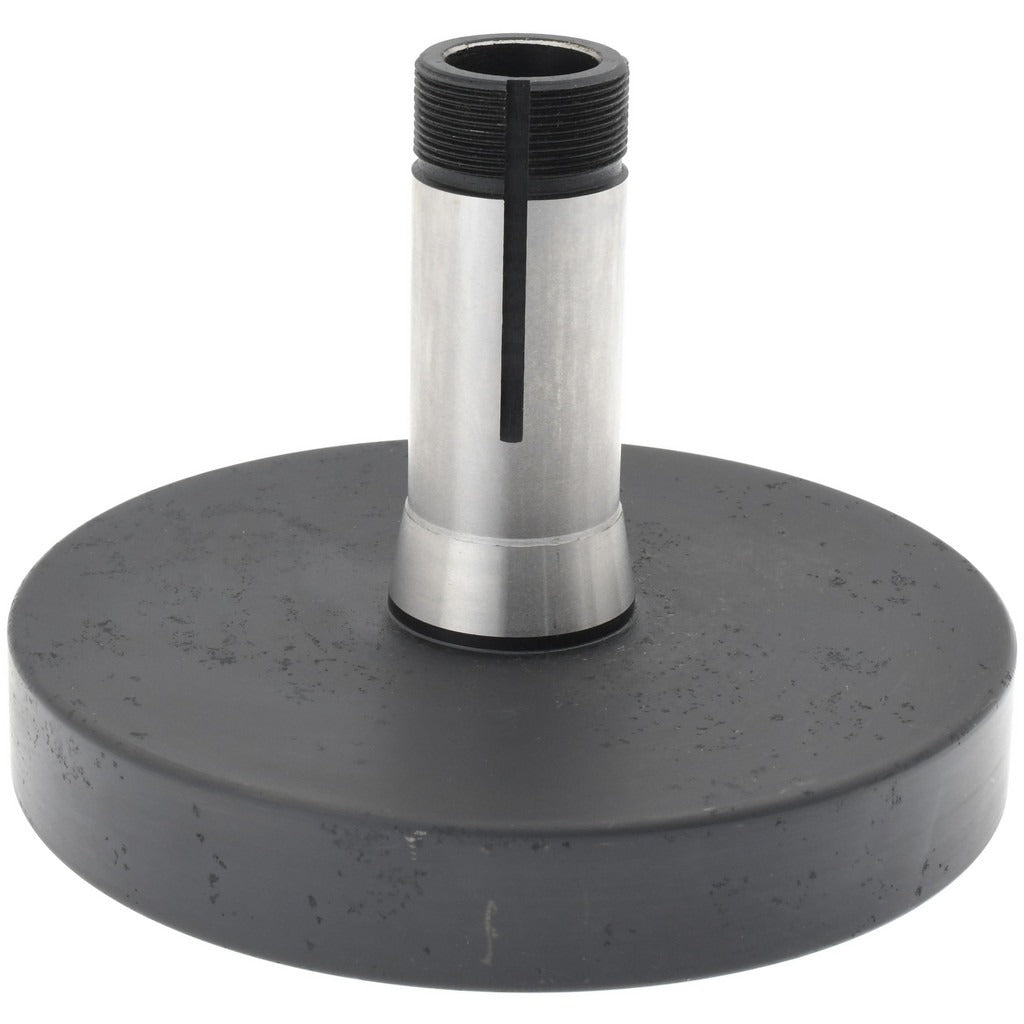

Value Collection 230-4469 5C Collet Fixture Mount

Product Description

The VALUE COLLECTION 230-4469 is a 5C collet fixture mount designed for use with 5C collet systems in machining and workholding applications. Built from steel, this fixture mount features a 6-inch face diameter and a 1-inch head length, providing a stable and accurate mounting platform for lathe and collet chuck setups. With a TIR (total indicated runout) of 0.002 inch, it delivers the concentricity required for precision turning and grinding operations. Machinists and toolroom technicians working with 5C collet systems rely on this type of fixture mount to secure workholding components with minimal runout.

This collet fixture mount is suited for machine shop environments where 5C collet compatibility is required. It is commonly used in manual lathe, CNC lathe, and collet chuck setups for both production and toolroom applications. The steel construction provides the rigidity needed for consistent, repeatable workholding across standard turning and light milling operations. It is appropriate for use in job shops, maintenance repair operations, and precision machining facilities.

Key Features

• 5C collet series compatibility for broad workholding system integration
• 6-inch face diameter for a wide, stable mounting surface
• 1-inch head length for compact profile in tight setups
• 0.002 inch TIR for precision concentricity in turning applications
• Steel construction for rigidity and durability in machining environments

Compatibility

Designed for use with 5C collet systems in standard lathe, collet chuck, and fixture mounting applications requiring a 6-inch face diameter mount.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with 5C collet workholding systems. Power down and lock out all machine motion before mounting or removing the fixture. Inspect the mating collet chuck or spindle face for burrs or debris prior to installation to preserve the stated TIR specification. Follow the machine manufacturer guidelines for proper seating and securing of the fixture mount.
