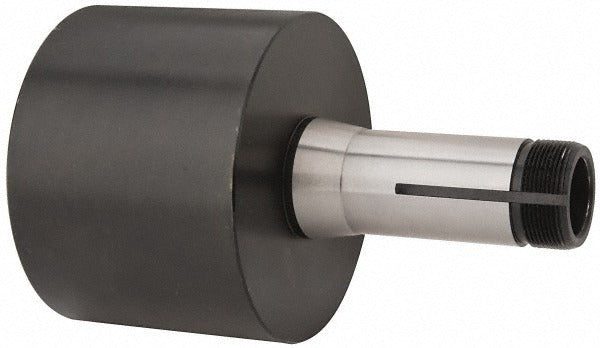

Value Collection 230-4467 5C Collet Fixture Mount Steel

Product Description

The VALUE COLLECTION 230-4467 is a 5C collet fixture mount designed for workholding applications in machining and toolroom environments. Built from steel, this fixture mount provides a stable, concentric interface for 5C collets, supporting repeatable part location during turning, grinding, or inspection operations. The unit features a 4-inch face diameter and a 3-inch head length, with a rated total indicator runout (TIR) of 0.00197 inches, supporting precision setups where concentricity is critical. At 13 pounds, the mount offers the mass and rigidity expected in production-grade workholding tooling. Machinists and toolroom technicians are the primary users of this component.

This fixture mount is suited for use on manual and CNC lathes, rotary tables, and inspection fixtures that accept 5C collets. It is commonly used in job shops, toolrooms, and production environments where consistent part holding and low runout are required across repeated setups. The 4-inch face diameter accommodates a range of workholding configurations, and the steel construction handles the mechanical loads typical of collet-based turning and grinding operations.

Key Features

• 5C collet series interface for broad compatibility with standard 5C tooling
• 0.00197-inch TIR rating supports precision, repeatable part location
• 4-inch face diameter accommodates a range of workholding setups
• 3-inch head length provides clearance and rigidity for typical lathe and fixture applications
• Steel construction delivers durability under production machining loads
• 13-pound mass contributes to setup stability during operation

Compatibility

Designed for use with standard 5C collet systems on lathes, rotary tables, and precision inspection fixtures that accept 5C collet mounts.

Installation Notes

Installation of this fixture mount is typically performed by a machinist or toolroom technician. Before mounting or removing the unit, ensure the machine spindle is fully stopped and all power is isolated per shop lockout/tagout procedures. Use properly rated mounting hardware and verify runout with a dial indicator after installation before beginning any cutting or inspection operation. Do not exceed the collet capacity or clamping force ratings of the associated 5C collet system.
