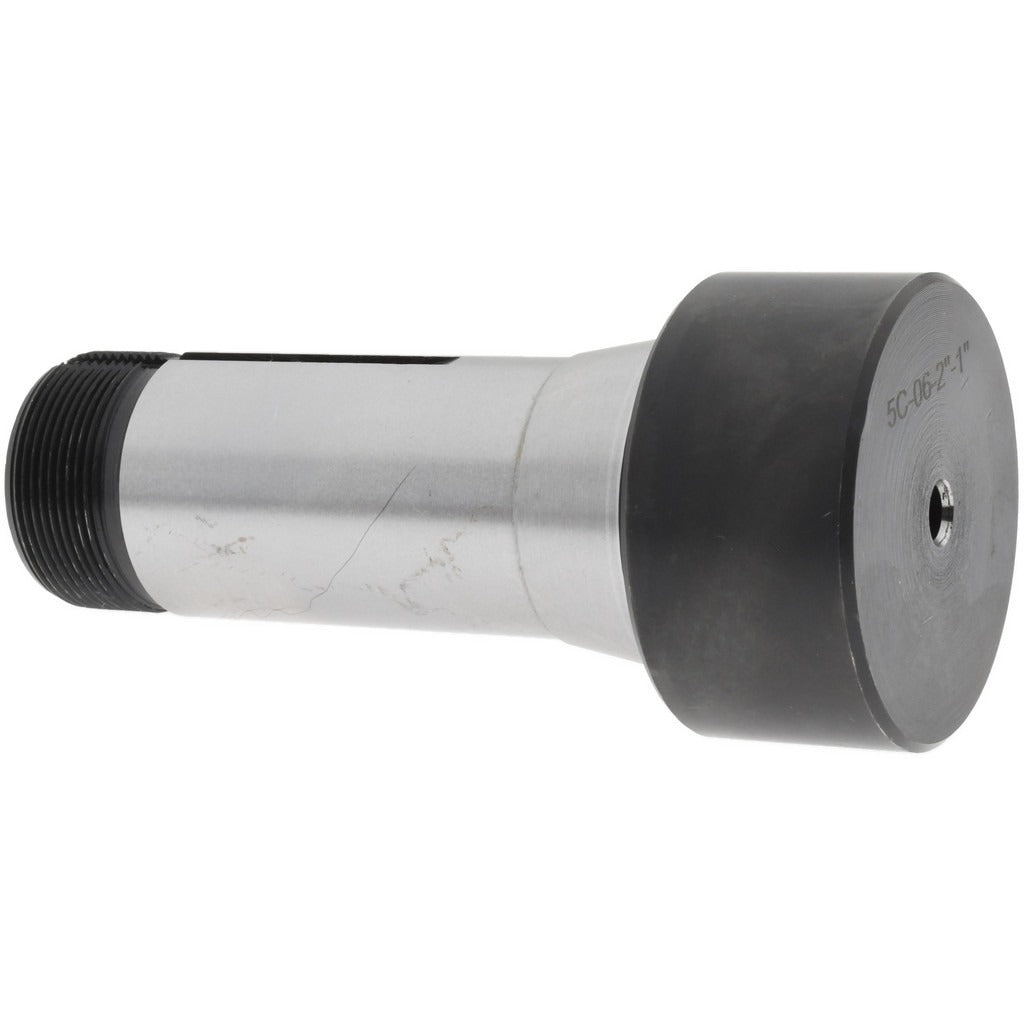

Value Collection 230-4460 5C Collet Fixture Mount Steel

Product Description

The VALUE COLLECTION 230-4460 is a 5C collet fixture mount designed for workholding applications in machining and toolroom environments. The mount accepts 5C-series collets and provides a stable, repeatable mounting platform for lathes, indexers, spin fixtures, and rotary tables. Built from steel for rigidity and durability, it features a 2 inch face diameter and a 1 inch head length. Total Indicated Runout (TIR) is rated at 0.002 inch, making it suitable for precision workholding setups where concentricity is critical. Machinists and toolroom technicians install this type of fixture mount when transitioning workpieces between operations or setting up dedicated collet-based holding fixtures.

This 5C collet fixture mount is suited for use in manual and CNC lathe setups, spin indexers, and collet-block fixtures found in both job shop and production machining environments. The 5C collet series is one of the most widely adopted standards in small-to-medium workholding, and this mount provides a direct interface for that tooling system. It is appropriate for residential shop, light industrial, and commercial machine shop applications wherever a reliable 5C collet interface is needed.

Key Features

• 5C collet series compatibility for broad workholding application coverage
• 0.002 inch TIR rating supports precision concentricity requirements
• 2 inch face diameter provides a stable mounting surface
• 1 inch head length suits compact fixture and indexer setups
• Steel construction delivers rigidity and resistance to deflection under load

Compatibility

Designed as an OEM-style replacement and standard fitment for machines and fixtures accepting 5C collet series mounts with a 2 inch face diameter interface.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. Before installing or removing the fixture mount, ensure the machine spindle is fully stopped and all energy sources are locked out per shop safety procedures. Inspect the mating spindle nose or fixture body for burrs or debris before seating the mount. Verify TIR with a dial indicator after installation to confirm the 0.002 inch specification is achieved in the assembled setup.
