Value Collection 230-4441 5C Expanding Collet Steel

Product Description

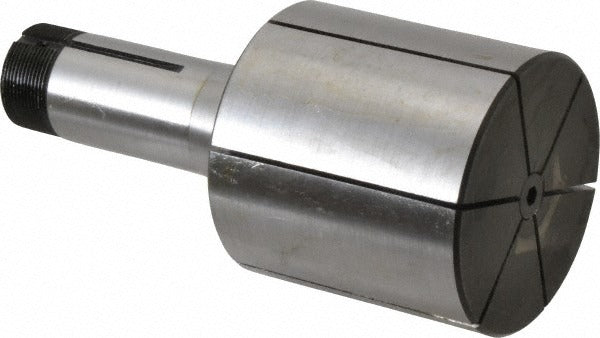

The VALUE COLLECTION 230-4441 is a 5C expanding collet machined from steel for use in lathes, collet fixtures, and rotary indexing equipment that accept the 5C collet standard. This collet expands outward to grip the internal bore or outside diameter of a workpiece, making it suited for secondary operations where the part must be held from the inside. The head measures 3 inches in diameter and 3 inches in length. Concentricity (TIR) is rated at 0.0020 inches, providing the repeatability required for turning, milling, and grinding operations. Installation and changeover are handled by machinists and tool room technicians.

This expanding collet is designed for machine shop applications where a standard 5C spindle or collet closer is already in use. It accepts workpieces ranging from 3/4 inch (0.7500 inches) minimum grip up to 2-15/16 inches (2.9375 inches) maximum grip. The internal thread is 1.041 inches at 24 threads per inch and the external thread is 1.242 inches at 20 threads per inch. Typical use cases include production turning on engine lathes and indexing on manual or CNC rotary fixtures in both job shop and production environments.

Key Features

• Expanding collet design grips workpieces from the inside bore for secondary-operation setups
• 0.0020 inch TIR concentricity for consistent part repeatability across production runs
• Steel construction for durability under repeated clamping cycles
• Grip range from 3/4 inch to 2-15/16 inches covers a broad range of workpiece sizes
• Internal thread 1.041 inches-24 and external thread 1.242 inches-20 for standard 5C collet closer engagement
• 3 inch head diameter and 3 inch head length match standard 5C tooling envelopes

Compatibility

Designed as an OEM-style replacement or direct-fit collet for machine tools and fixtures built to the 5C collet standard.

Installation Notes

5C expanding collets are installed and changed by qualified machinists following the machine tool manufacturer's spindle and collet closer procedures. Ensure the spindle is fully stopped and the machine is locked out before inserting or removing the collet. Inspect the collet taper and the spindle bore for chips or burrs before seating the collet, as contamination directly affects runout. Torque the draw tube or closer to the machine manufacturer's specification only.
