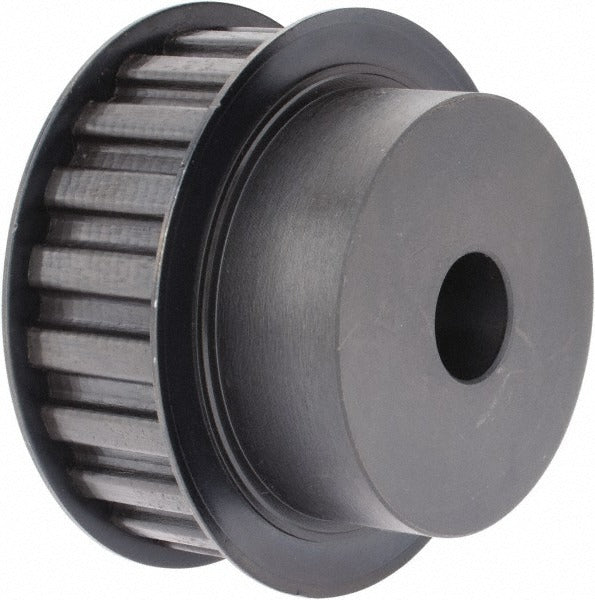

Value Collection 22H1006FSPB3/4 Timing Belt Pulley

Product Description

The VALUE COLLECTION 22H1006FSPB3/4 is a 22-tooth timing belt pulley designed for positive-drive power transmission applications. It features a 3/4 inch bore and a 3.447 inch outside diameter, with a pitch diameter of 3.501 inches. The pulley accommodates a 1 inch wide timing belt. Constructed from steel cast iron, this pulley delivers reliable torque transfer in industrial and mechanical drive systems. It is a standard replacement or new-installation component suited for maintenance technicians, millwrights, and mechanical contractors working on belt-driven machinery.

This timing belt pulley fits into H-series timing belt drive systems where a 22-tooth profile is required. Typical applications include conveyor drives, linear actuators, pump drives, and other synchronous mechanical systems requiring precise speed and position control. The 3/4 inch bore size makes it compatible with common shaft diameters found in light to medium industrial equipment. Installation is straightforward for technicians familiar with power transmission components and belt drive alignment procedures.

Key Features

• 22-tooth H-series timing belt pulley profile for synchronous positive-drive applications
• 3/4 inch bore diameter fits standard shaft sizes in light to medium industrial equipment
• 3.447 inch outside diameter and 3.501 inch pitch diameter for accurate belt engagement
• Accepts 1 inch wide H-series timing belts
• Steel cast iron construction provides durability under continuous drive loads

Compatibility

Designed as an OEM-style replacement or direct-install timing belt pulley for H-series synchronous belt drive systems requiring a 22-tooth, 3/4 inch bore configuration.

Installation Notes

Installation should be performed by a qualified millwright or mechanical technician. De-energize and lock out the drive system before removing or installing any pulley or belt components, following LOTO procedures per OSHA 29 CFR 1910.147. Verify shaft and bore alignment before securing the pulley, and inspect belt tension and tracking after installation. Do not operate the drive without all guards and safety covers in place.
