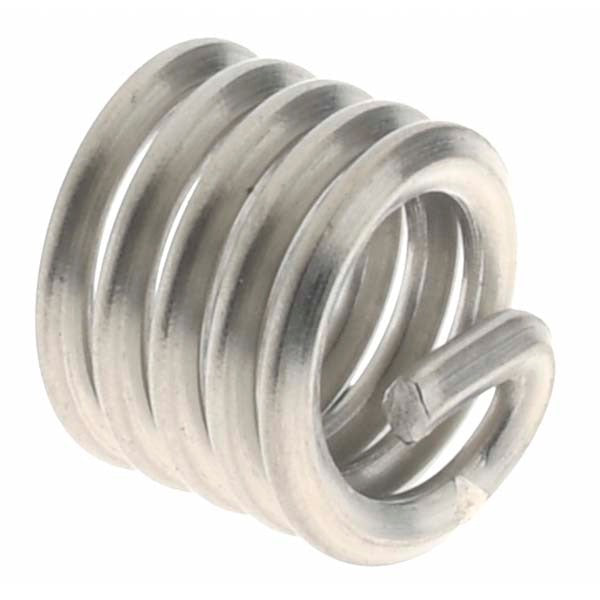

Value Collection -22511-1 10-24 Free Running Insert 10pk

Product Description

The VALUE COLLECTION -22511-1 is a free running wire thread insert designed to create or restore strong, wear-resistant threads in softer base materials. Manufactured from stainless steel with a bright, uncoated finish, this tanged insert measures 0.285 inches overall length and conforms to a 1-1/2D length-to-diameter ratio. The 10-24 UNC thread profile makes it a standard choice for machine thread repair and thread reinforcement applications across light industrial, HVAC equipment, and mechanical assembly work. Installation requires a proper insert installation tool matched to the 10-24 thread size.

Free running inserts of this type are commonly installed in aluminum, magnesium, plastic, and other materials where base thread strength is insufficient for the application load. They are used in equipment manufacturing, field repair, and production environments wherever a standard 10-24 UNC thread must be anchored reliably. Maintenance technicians and assembly mechanics across HVAC, plumbing, and general mechanical trades use these inserts as a durable thread repair solution without the need to replace entire components.

Key Features

• 10-24 UNC thread size for standard machine screw compatibility
• Stainless steel construction for corrosion resistance in demanding environments
• Tanged design for controlled installation and positive seating
• 0.285 inches overall length at a 1-1/2D ratio for reliable thread engagement
• 5 free coils for consistent load distribution along the insert body
• Bright, uncoated finish — no coating interference with thread tolerance

Compatibility

Designed as a standard free running wire thread insert for use in any tapped hole prepared to 10-24 UNC specifications in aluminum, soft metals, or engineered plastics requiring thread reinforcement.

Installation Notes

Installation is performed using a dedicated wire thread insert installation tool sized for 10-24 UNC. The tang is used to drive the insert into the prepared tapped hole and must be broken off after installation using a tang break-off tool. Ensure the receiving hole is properly drilled and tapped to the insert manufacturer's drill chart specifications before installation. Power down or de-energize any equipment before performing thread repair work on live assemblies.
